280g 29er Carbon Mtb Rims XC Tubeless Carbon Rim UD/3K 12K 3K Twill Matte Glossy 29in Clincher Hookless New Asymmetric

$169.00

促销售罄

适用自行车类型山地

size 29er 27.5er

数量

Specification

Size: 29" /27.5er

Rim Type: Clincher (Hookless)

Materials: Toray T800 + T700 Carbon Fibers

Tubeless Compatible: Yes

Drillings holes : 28

Warranty: 3 Years

BSD (Bead Seated Diameter): 622mm

ERD (Effective Rim Diameter): 590mm

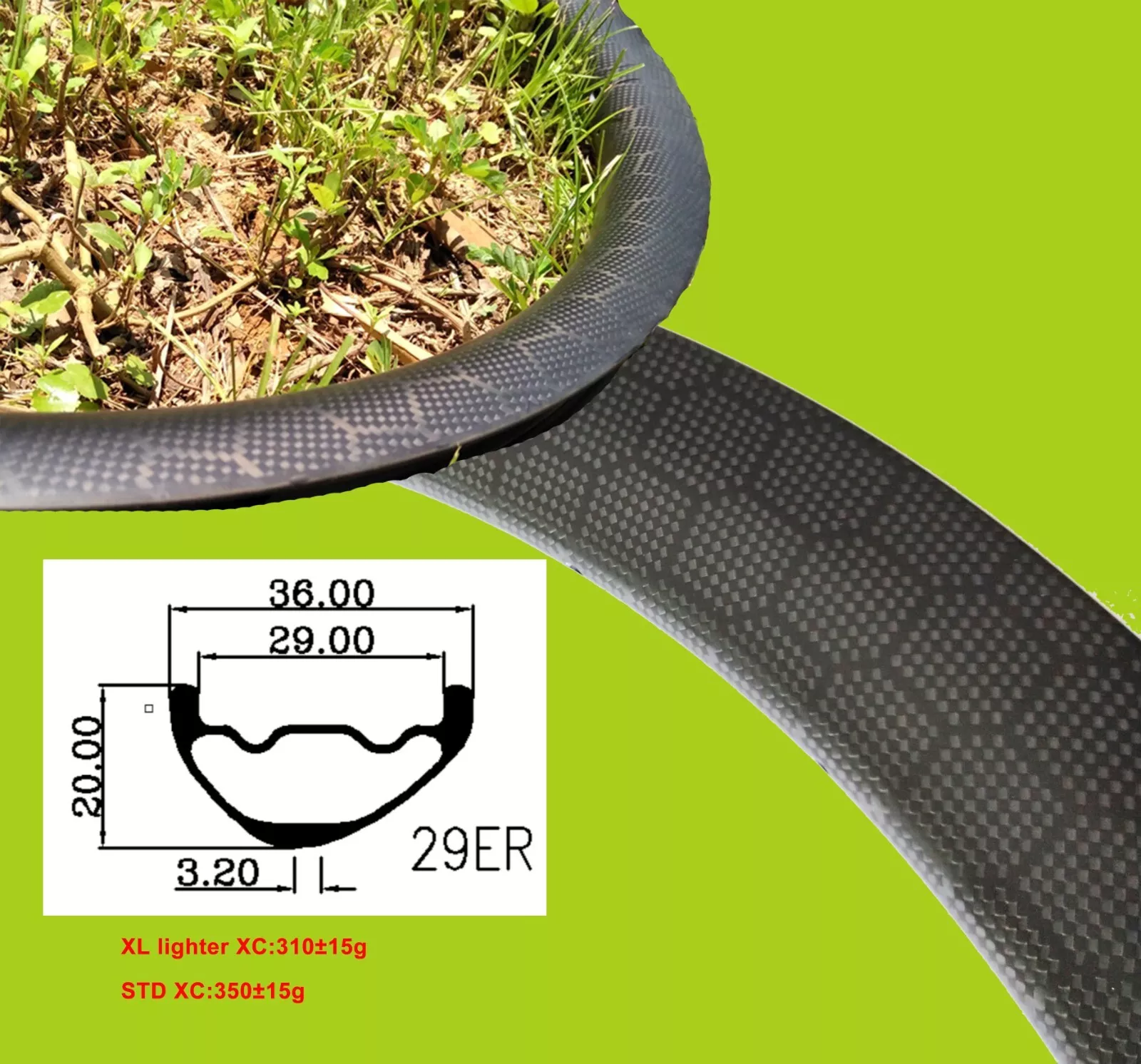

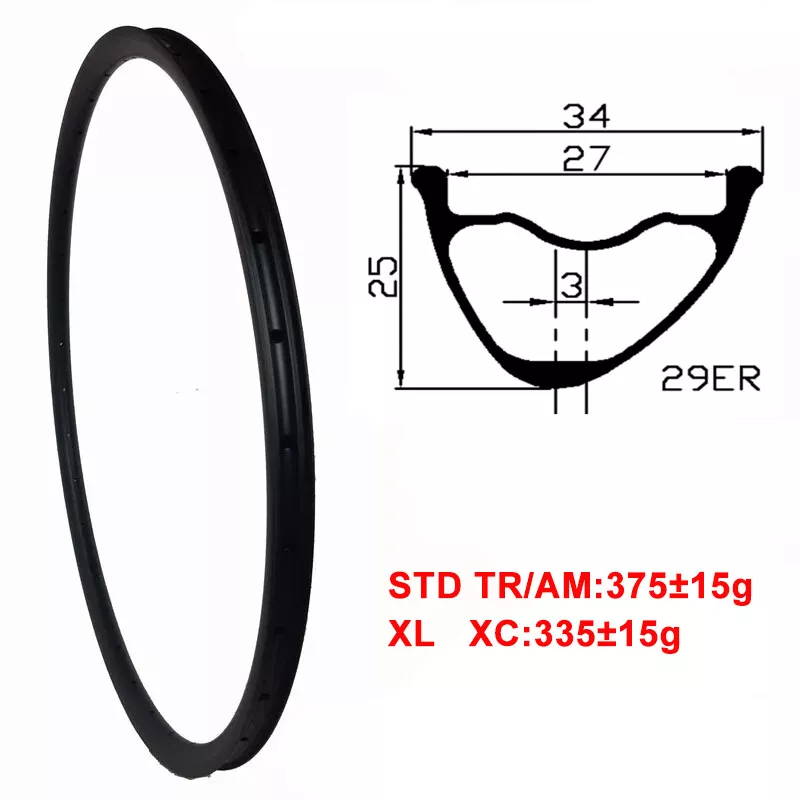

External Width: 37mm(27/30/33/34/35/36/39/42mm)

Internal Width: 30mm(22/24/27/29/31/33mm)

Rim Height: 21.5mm (20/25/28/30mm)

Weight: STANDARD AM 400g DH450g XL flyweight 360g (270g/290g)

Valve Hole Diameter: 6.5mm (Presta)

Spoke Holes Diameter: 4.5mm

Spoke Holes Angle: ± 6°

Spoke Holes Offset: 3mm

Assembly Hole Diameter: 7.5mm

Spoke Tension: 80~130kgf

Tire Size: 2.0" ~ 2.75"

Tire Pressure: 30 ~ 60psi

Load Limit (One Wheel): 120kg

Carbon Weave Availability: UD

Finish: Free Coating / Matte / Glossy

XC / Marathon

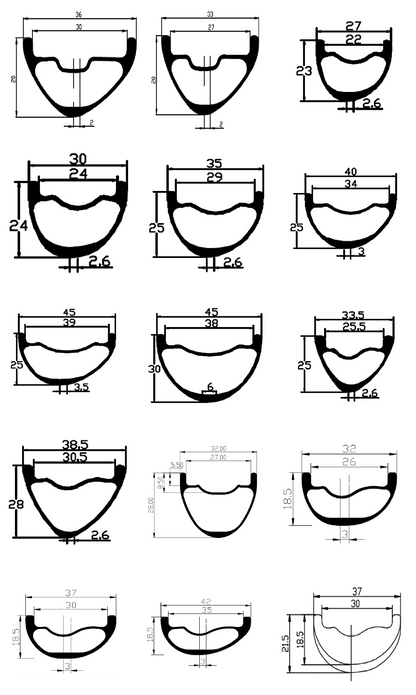

all the following rims avaliable:

when you place order ,just leave me a message for the detail you want:

1.finish:UD OR 3K(snake skin extra cost $25 per rim)

2.model: asymmetrical or symmetry

3.painting: glossy or matte

4.27.5er or 29er(defalt)

if you can not find the model from the opitions please contact me! all model we can looking for it for you!

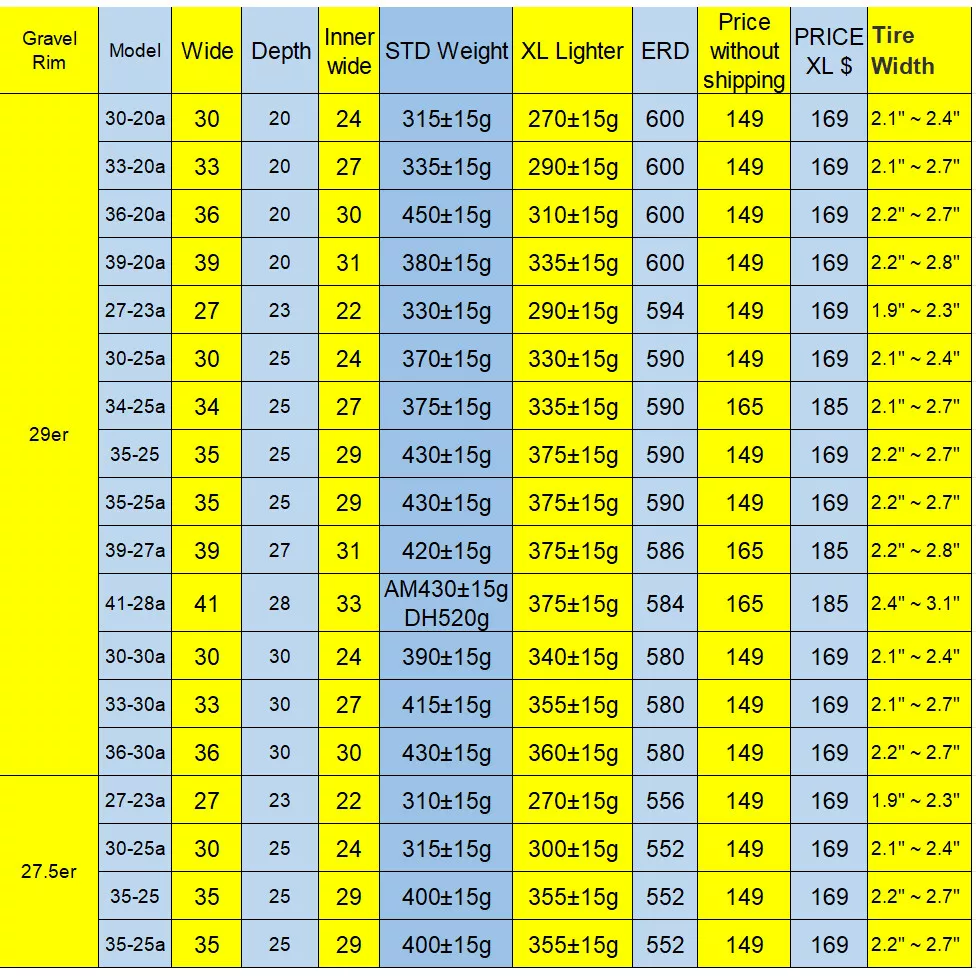

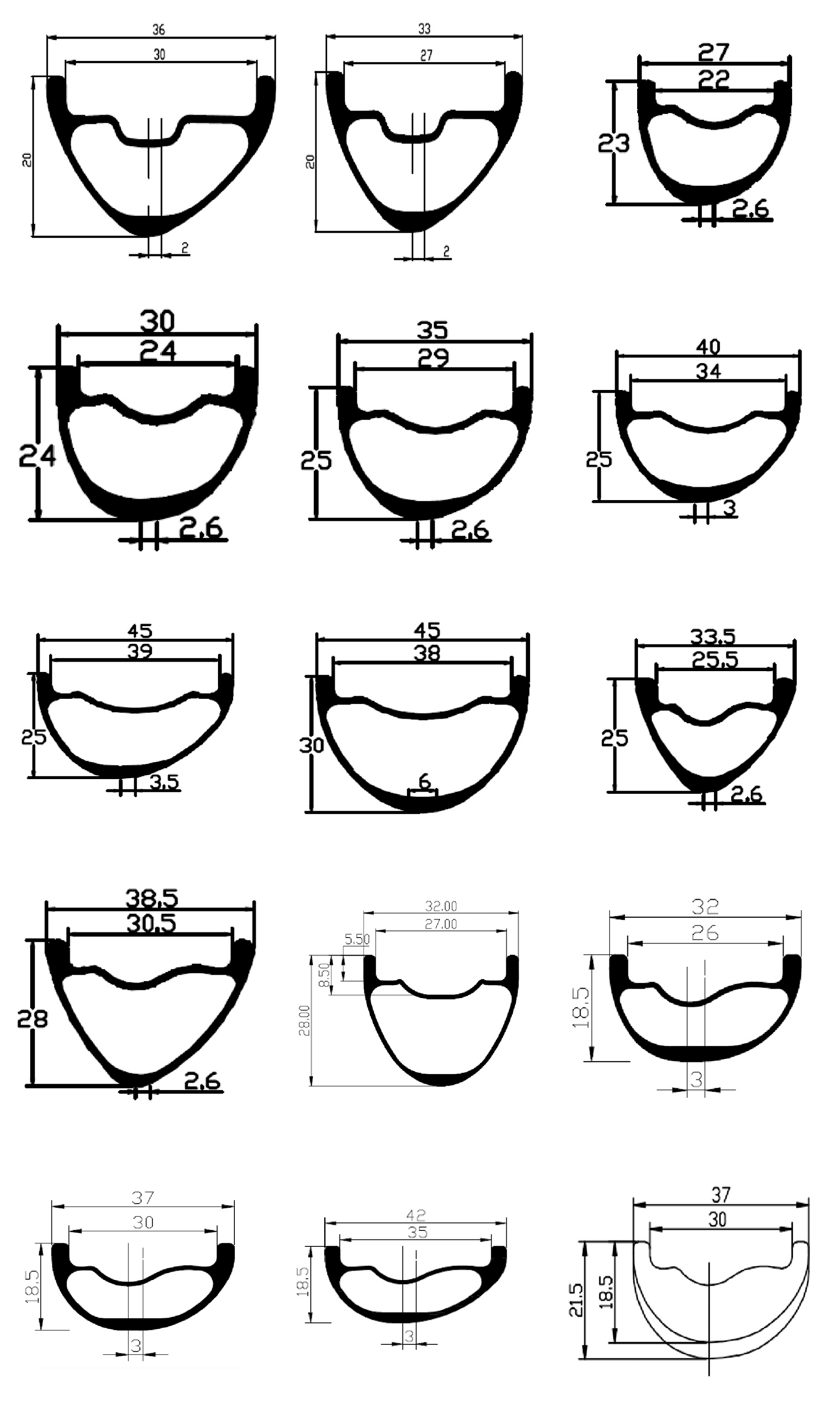

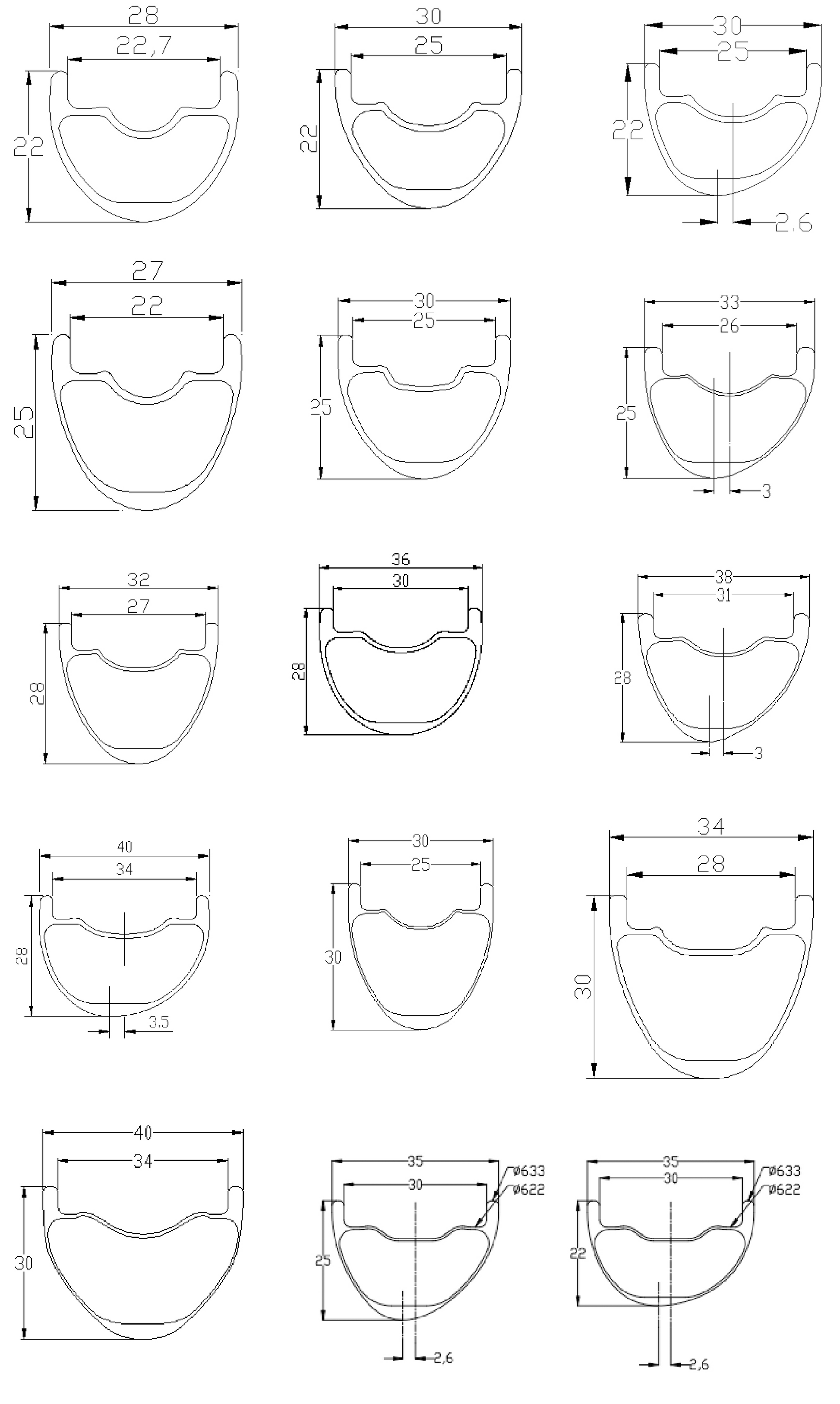

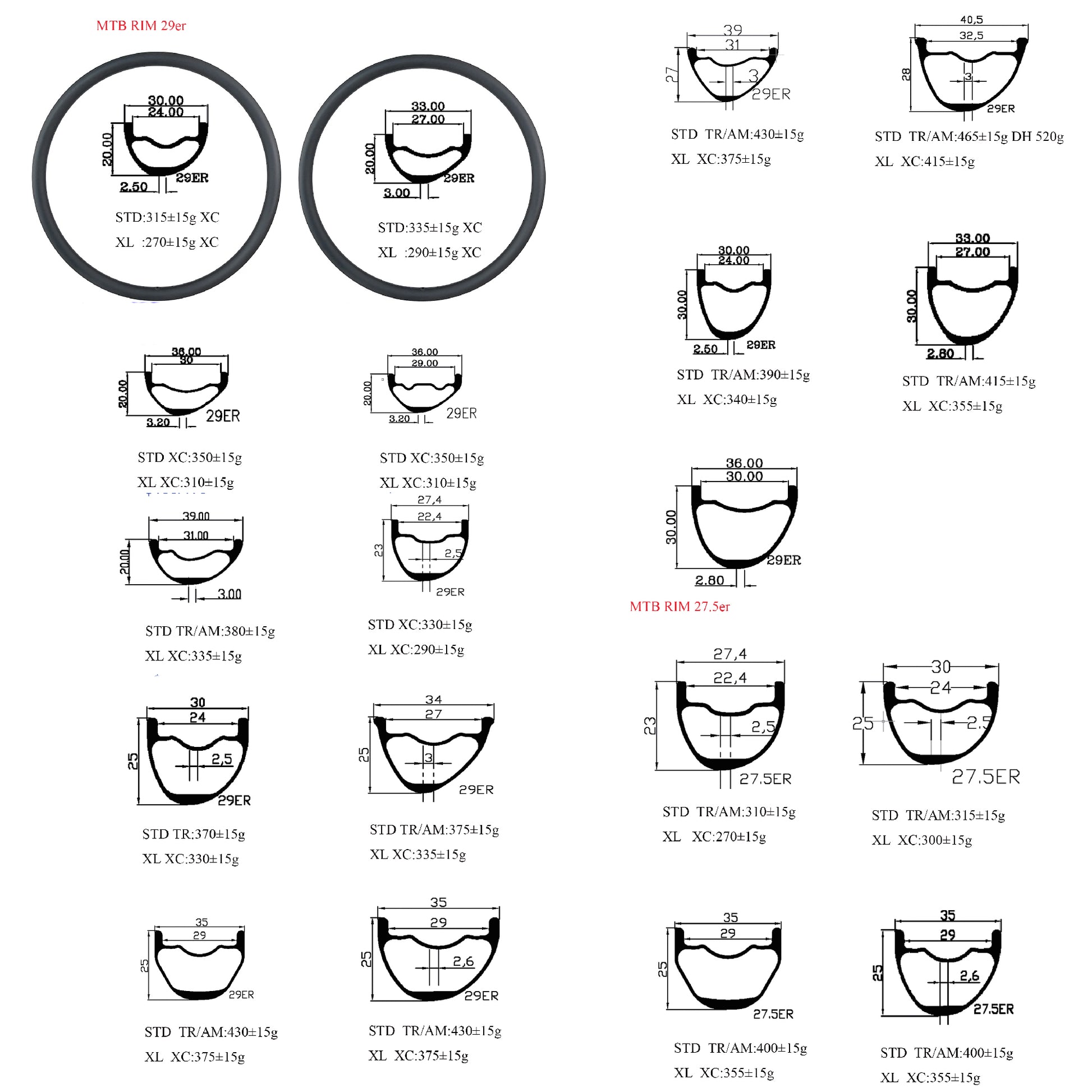

the following model all avaliable.

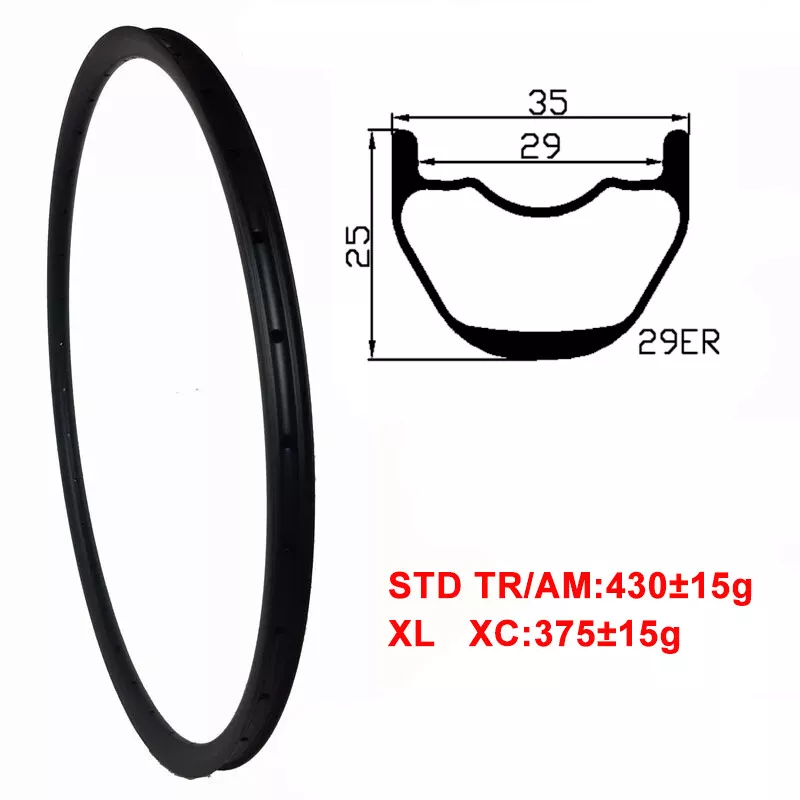

Thanks to its versatility. The 29mm inner width offers a wide and stable tire profile for your enduro tires, without becoming square-edged. You can easily get away with running 2.2’s or 2.5’s, but 2.3” - 2.4” tires are the sweet spot. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, and reinforced sidewalls support G-Out forces, and increased rim stiffness, increasing suitability for aggressive riders over 200 pounds.

More air volume, a wider stance, and the bead seat retention system will keep your tires in place on race day and provide an incredibly solid tubeless platform. Rim stiffness is further increased with a deep profile, allowing for cornering and charging through rough terrain with more speed and confidence than ever before.

Built to handle a host of new wide format tires all the way up to a full-on 3.0” Plus tire, with our durable BlackTek finish, updated profile, and new manufacturing process, the AM40 is sure to stand the test of time.

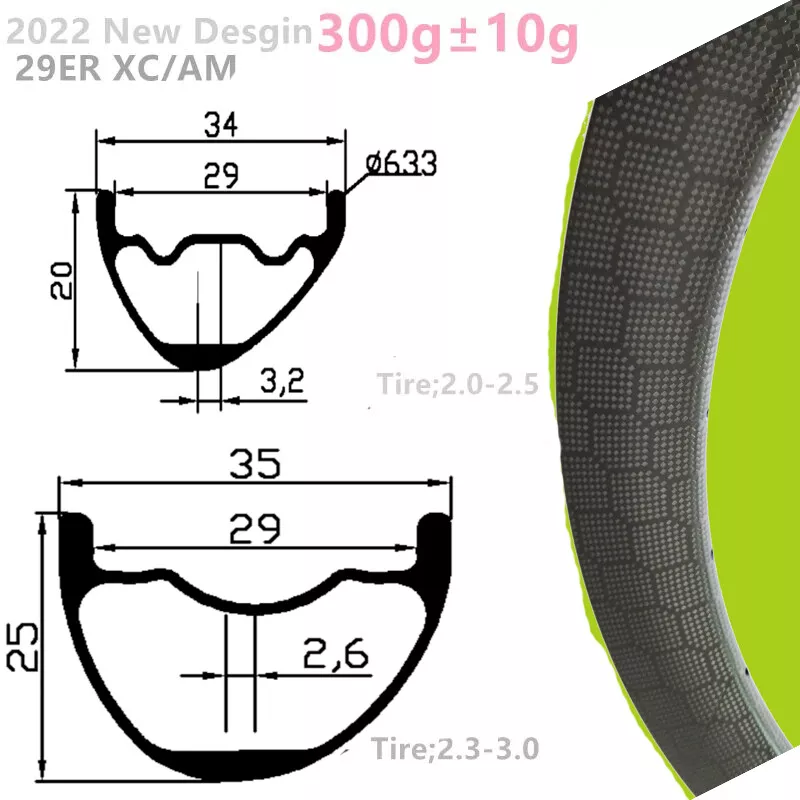

Utilizing our updated asymmetric profile and new manufacturing process, you’re getting a very modern rim that is not only strong and scratch resistant, but also quite versatile.
