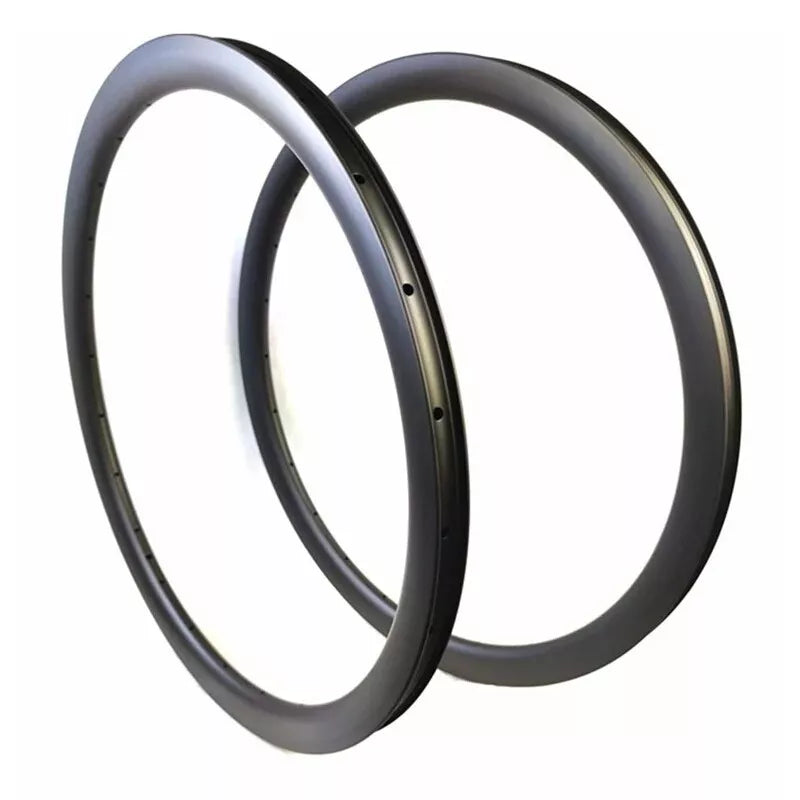

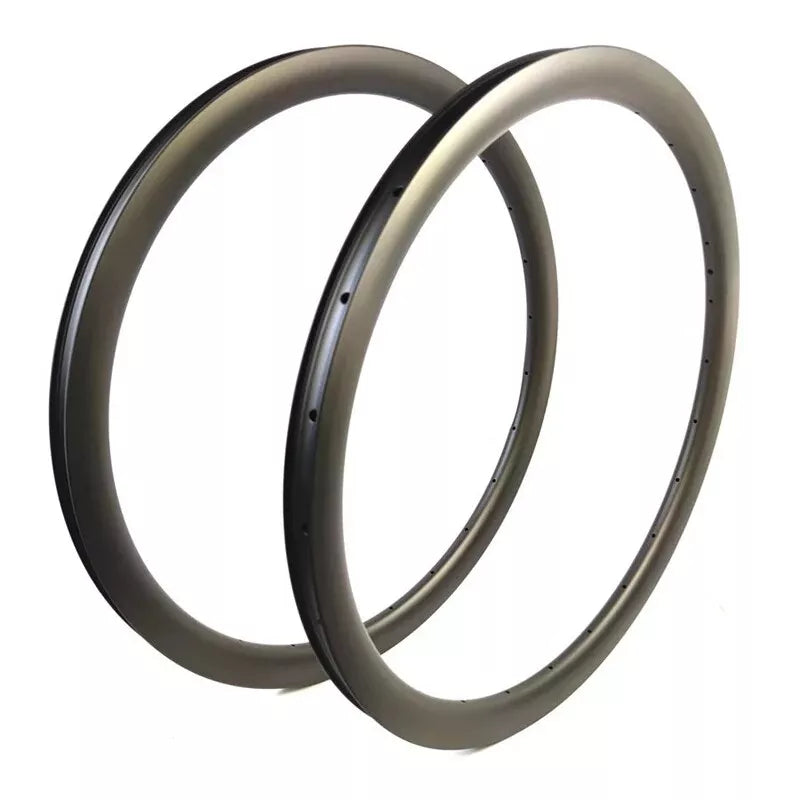

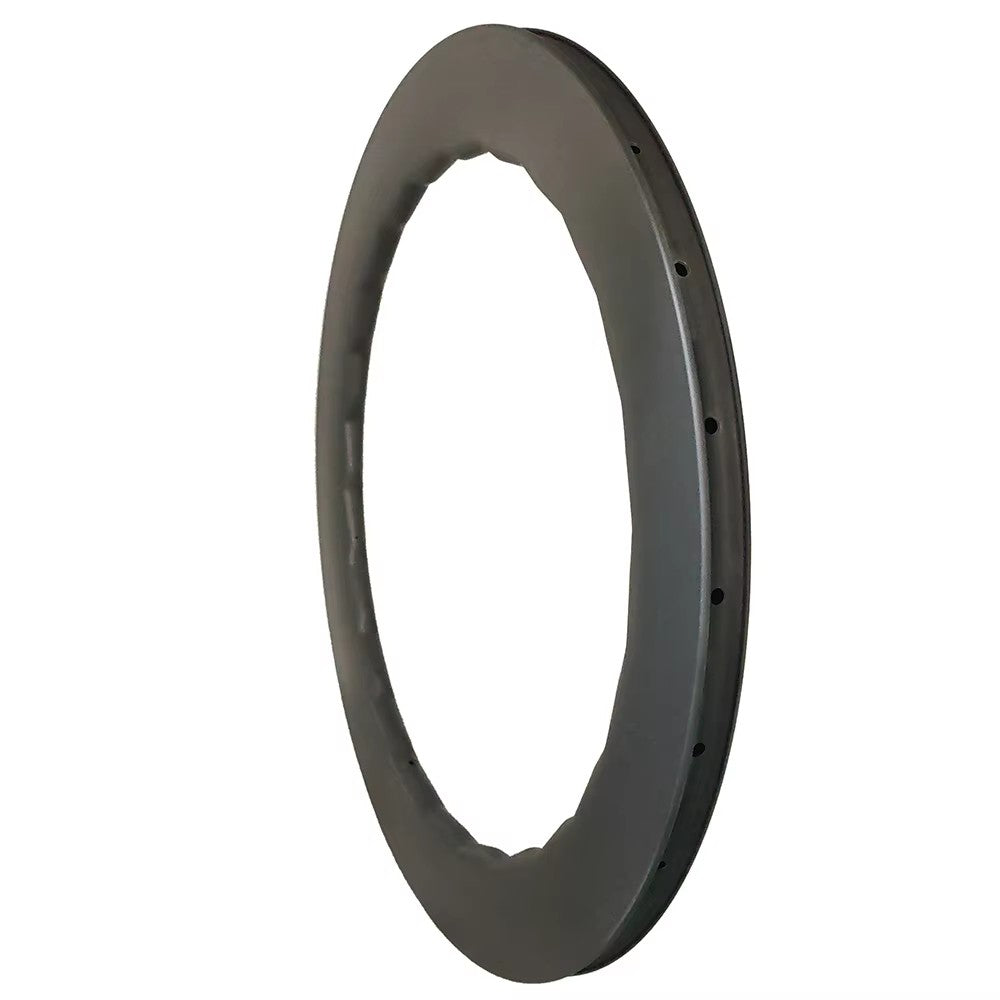

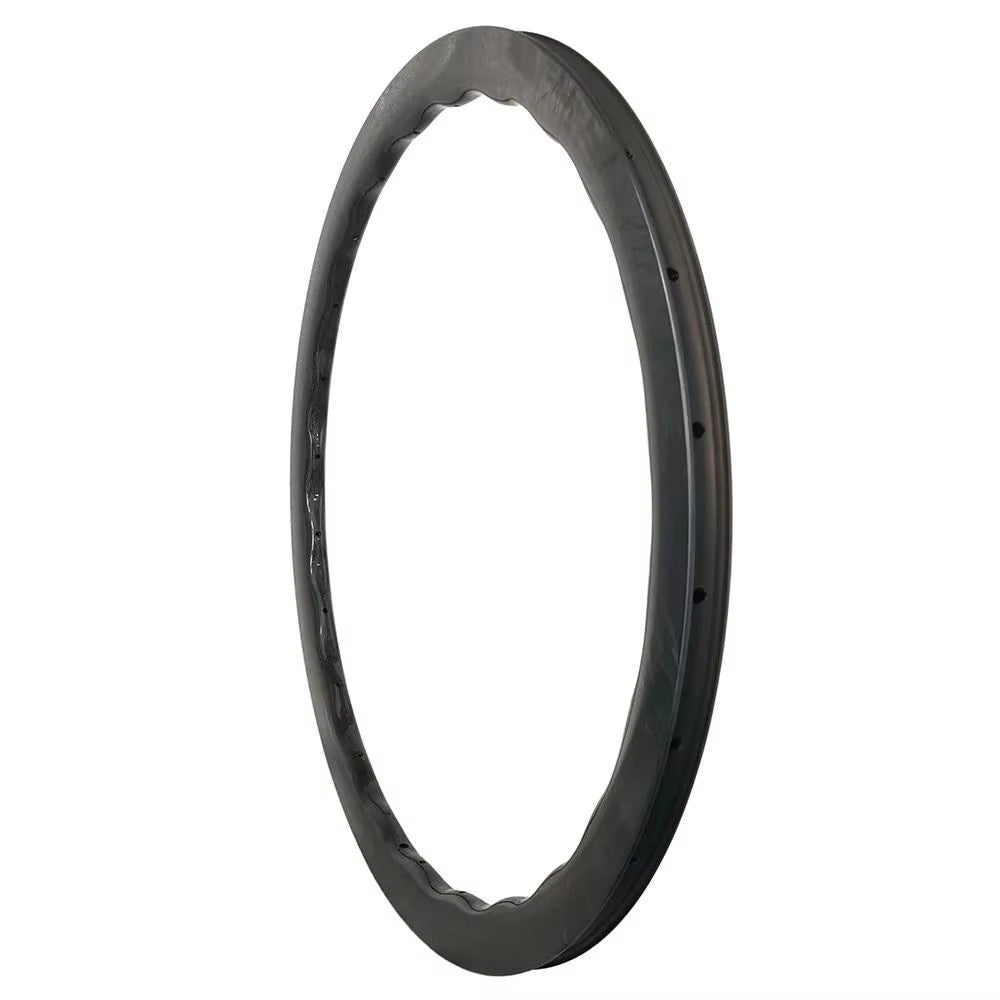

Carbon Gravel road bike rim 700C Road 32/35/39/45/55mm Deep Carbon Rim 30mm Wide Tubeless Clincher Disc Wheel rim

Carbon fiber rims offer the following core advantages compared to carbon rims from other manufacturers:

1. Superior Stiffness

   Utilizes high-modulus carbon fiber materials, significantly improving the strength-to-weight ratio

 Optimized lateral stiffness, resulting in minimal deformation during pedaling and more direct, efficient power transfer

    Ensures stability during high-speed riding and aggressive handling

2. Enhanced Shock Absorption

   - Unique carbon fiber layering design effectively absorbs road vibrations

   - Delivers a smoother riding experience, reducing fatigue on long-distance rides

   - Balances competitive performance with comfort

3. Exceptional Durability

   - Advanced manufacturing processes ensure excellent fatigue resistance

   - Rigorous quality testing guarantees long-term reliability

   - Lifespan far exceeds that of ordinary carbon rims, reducing replacement frequency and costs

4. Consistent Performance

   - Precision mold forming ensures highly consistent performance across all rims

   - Strict quality control systems eliminate performance variability

   - Provides stable and reliable performance support for competitive riding

These advantages make our carbon fiber rims stand out in terms of performance, comfort, and durability, making them the preferred choice for riders seeking the ultimate cycling experience!

All bike wheels model we may can produce,contact me if you have any question.

Rim Model:Gravel series
* Material: Toray T700 & T800 Premium Carbon Fiber
* Size: 29”/700C (ETRTO 622mm)
* Intended Use: CX/Gravel
* Bead Type: Clincher/tubuless/tubular (hookless/hooked)
* Tubeless Capable: Yes

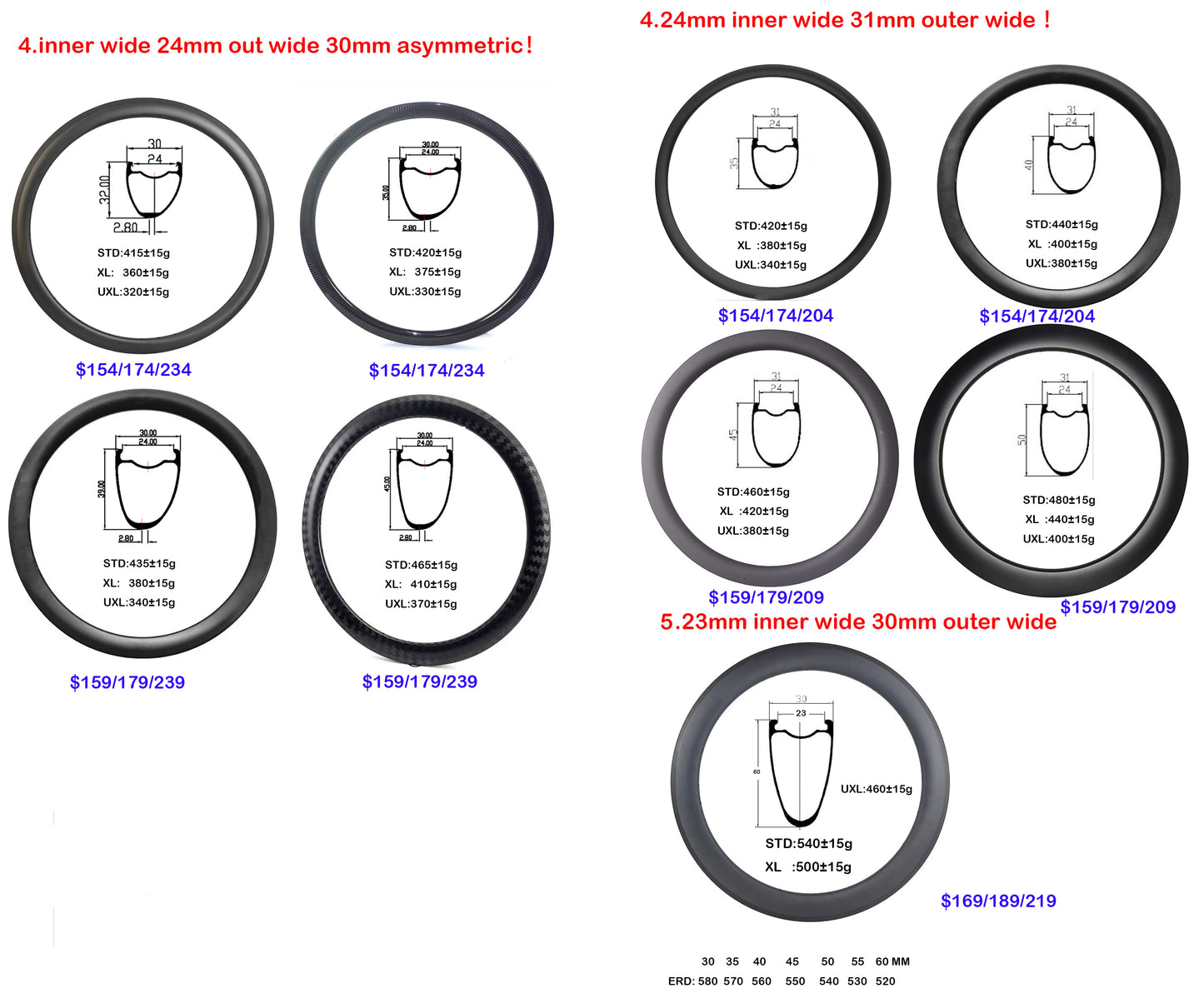

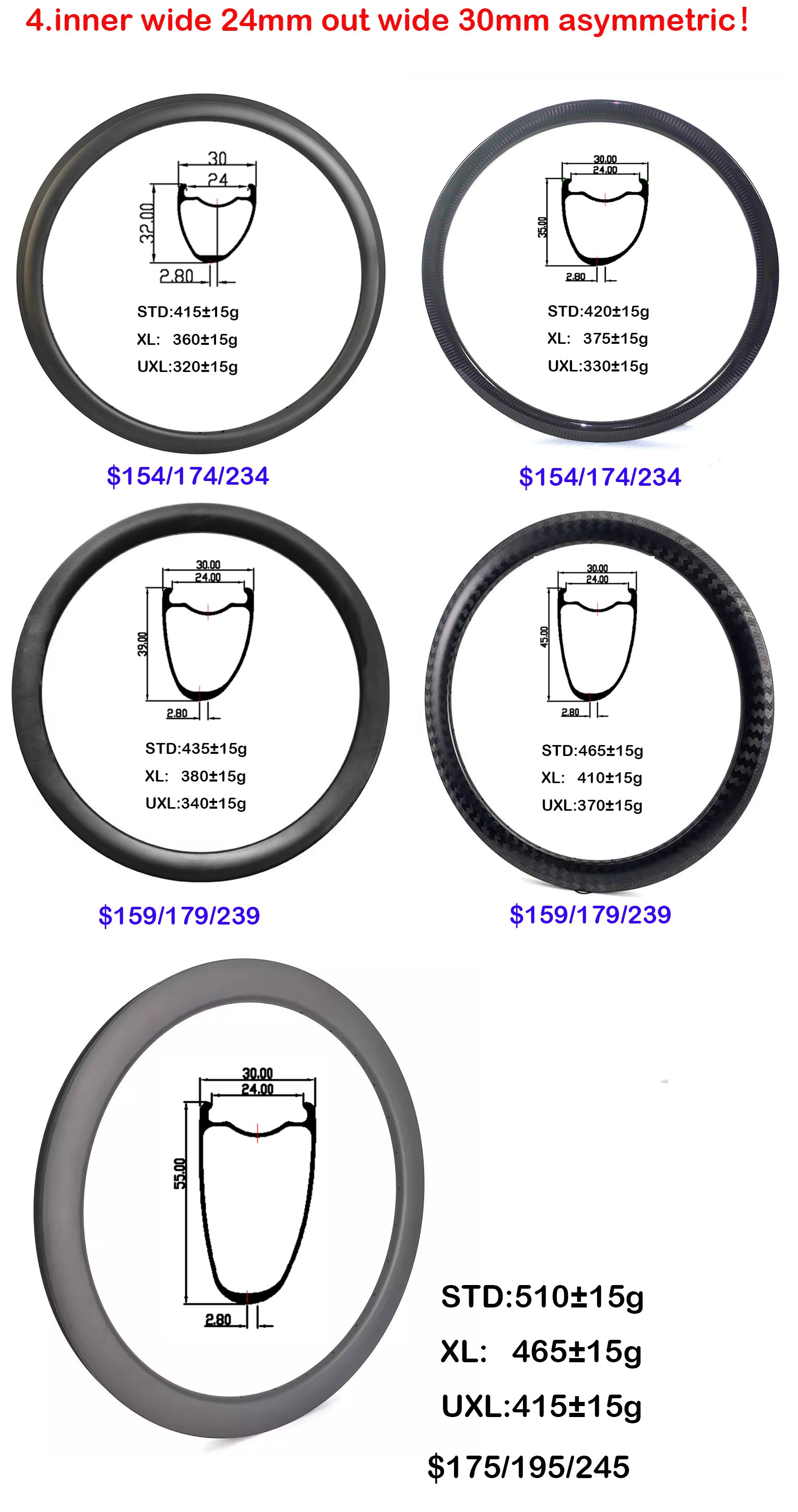

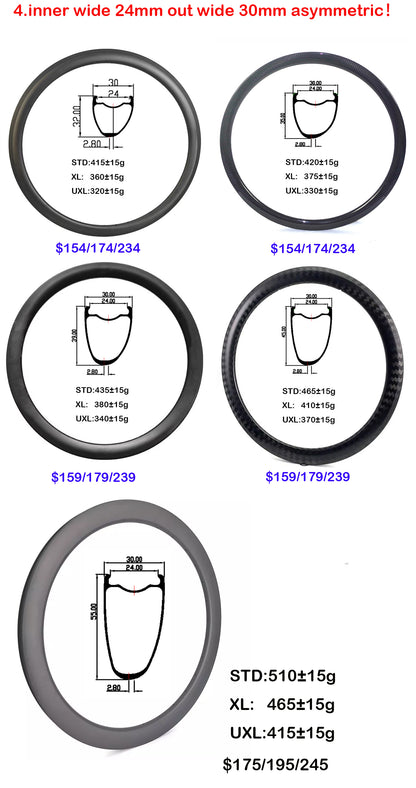

 * Inner/Outer Width: 24mm/30mm

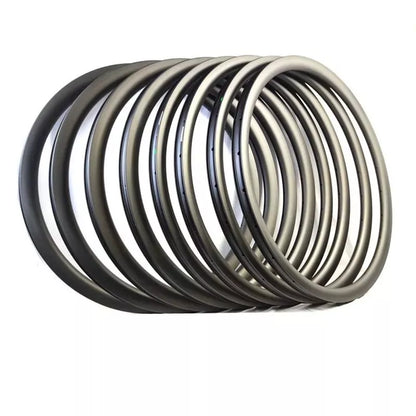

* Depth:  32/35/39/45/55mm
 * ERD:576/ 570/562/550/530mm (not including nipple head dimension)
* Rim Weight: Standard 465+/-15g, XL 410+/-15g UXL360±15g
* Profile: aSymmetric (2.8mm)
* Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, XL Lighter 90kg/ 198lbs
* Spoke Hole Angle: ±8°
* Spoke Tension: 120~135kgf front disc side and rear drive side
* Max Tire Pressure (with 28C): Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48 bar
* Recommended Tire Width: 32C~70C

* Hole:16-36H

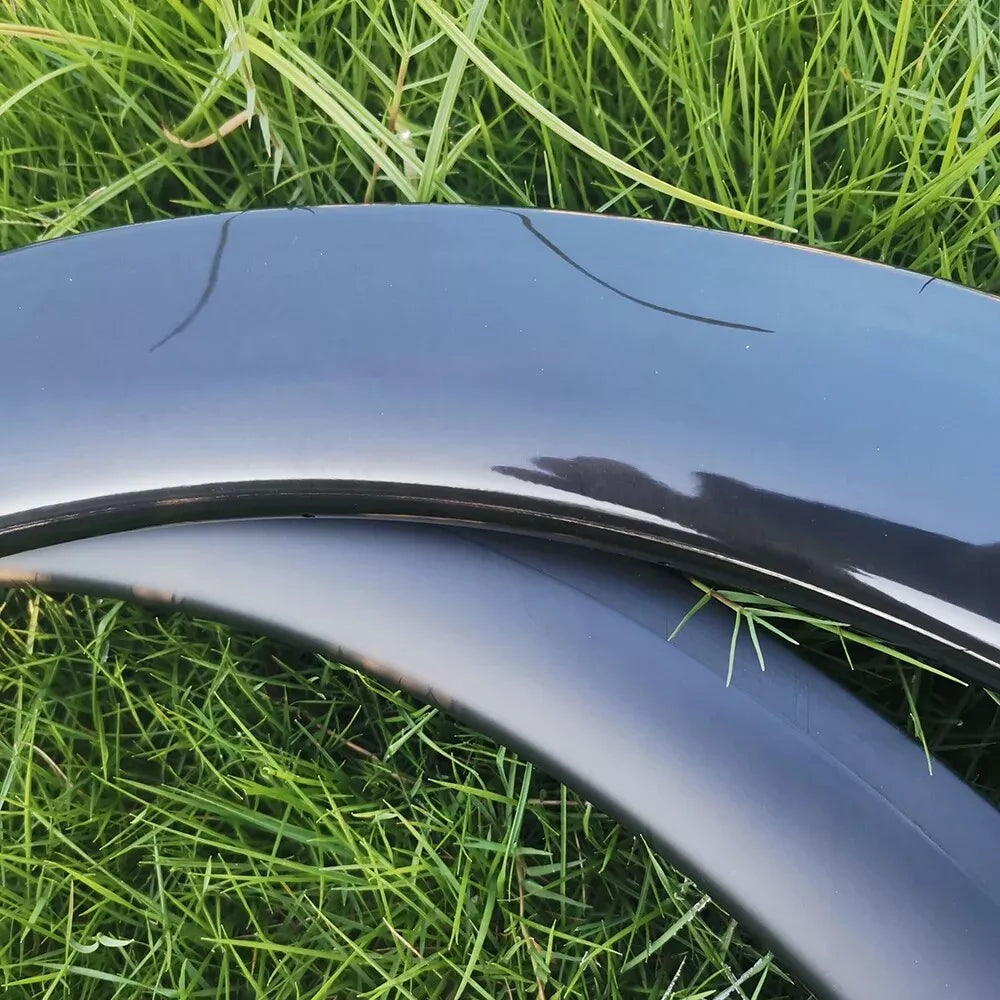

* Finish: Matte, Glossy

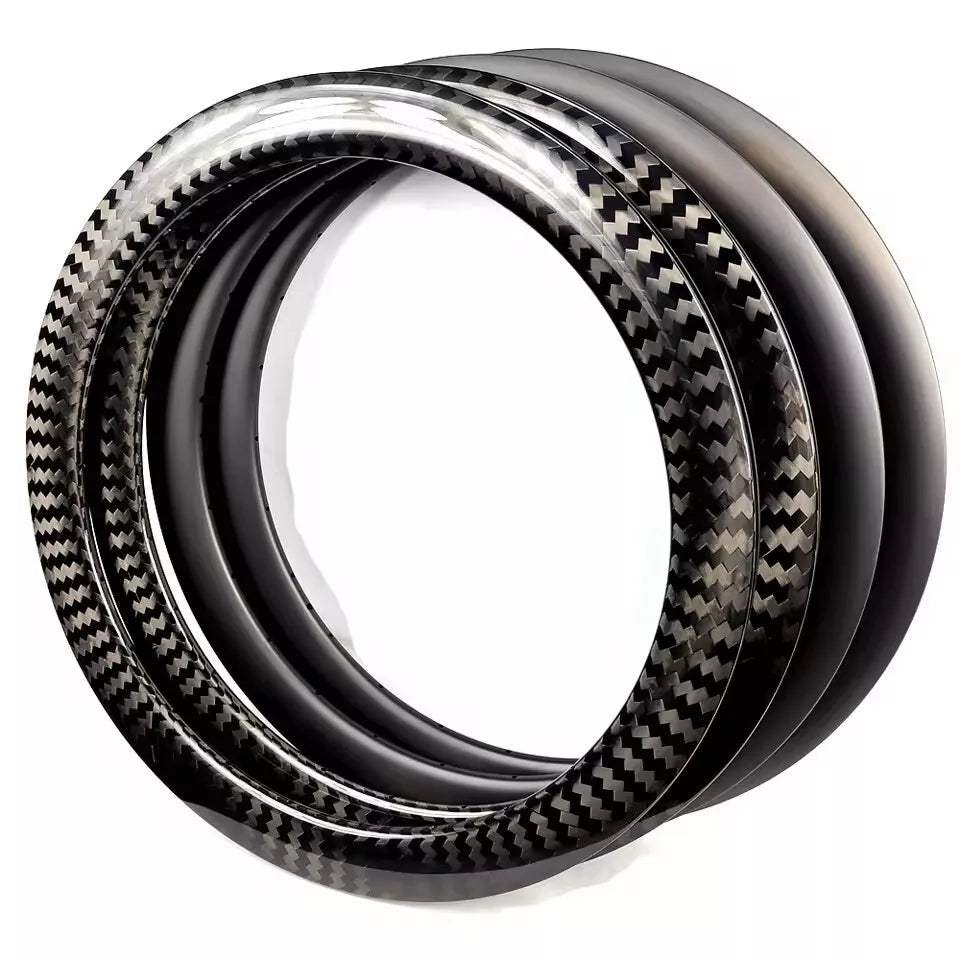

* Weave: UD, 3K, 3K Twill, 12K, 12K Twill , snake skin,and custom
* Brake Track: UD, 3K,
 * Weight Style: Standard, XL lighter ,UXL lightest
* Warranty:2years
