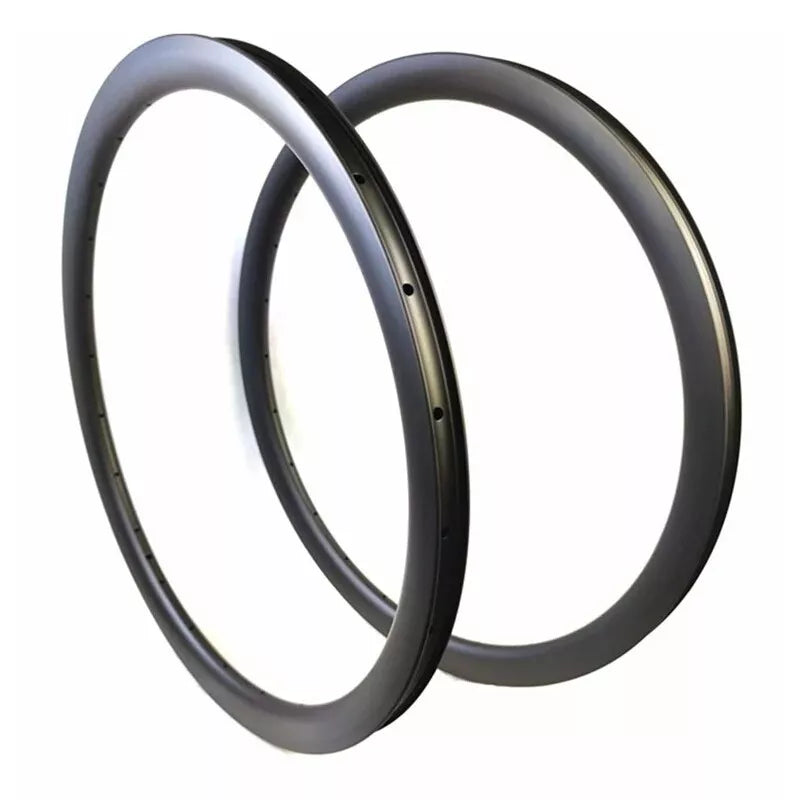

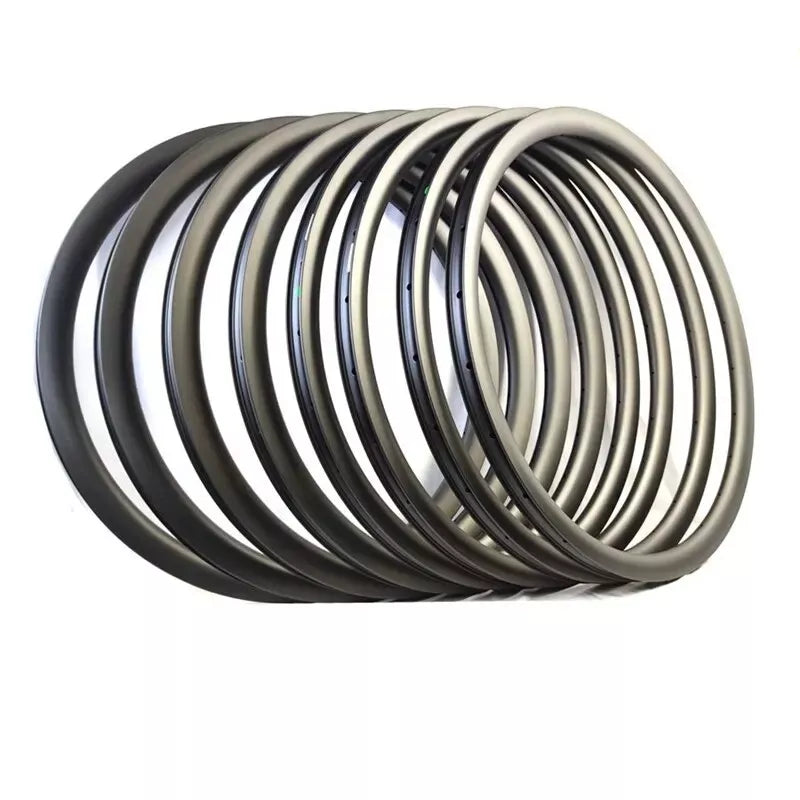

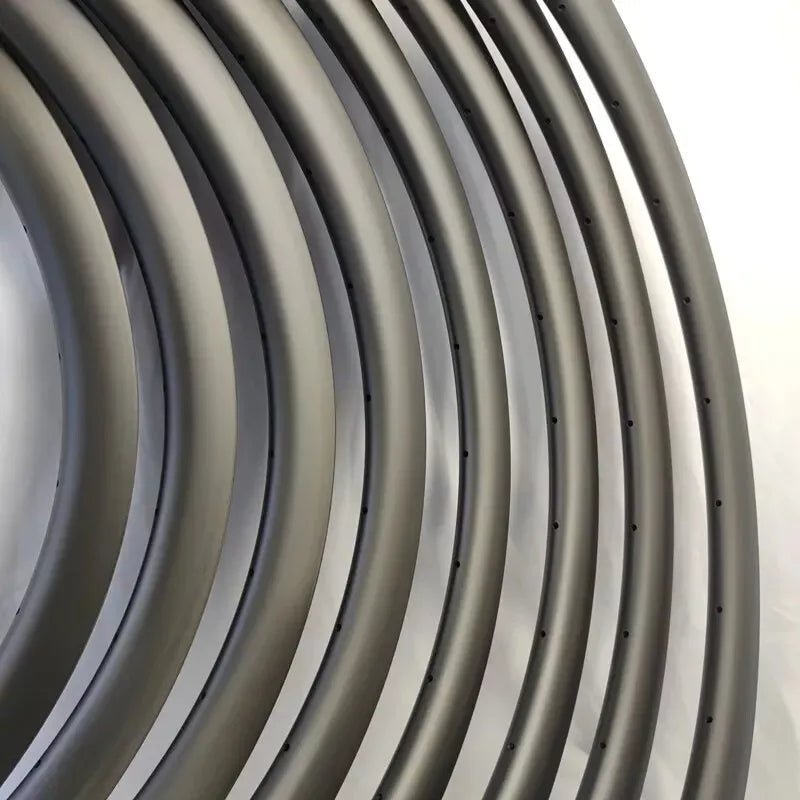

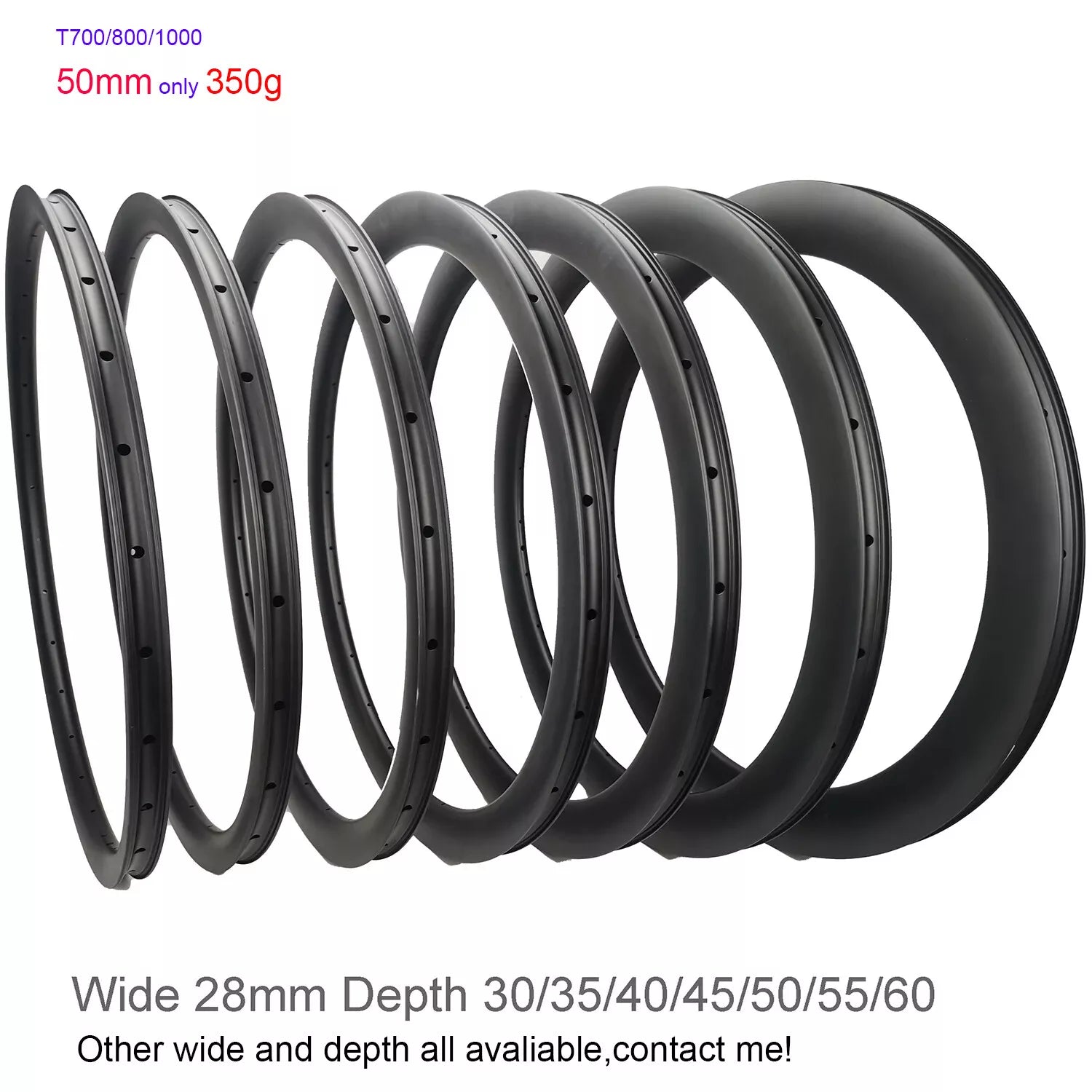

Carbon Road bike rim 30/35/40/45/50/55/60mm 700C Bicycle Carbon Rim Disc Brake 28mm wide Bike Tubeless Rims

Why  Buy carbon rim from  DFS?

If you are looking for a new set of carbon rims or wheels, it doesn’t take long to realize that there are a lot of different brands to choose from. With so many options out there, what is it that separates DFS from the rest?

1.DFS is a rim manufacturer and not a trading company.

2.We produce tens of thousands of rims every year. Besides being strictly tested by equipment, our rims are also extensively tested by our distributors all over the world on some of the most challenging racetracks. We continuously innovate based on the feedback from customers to improve the quality, durability and performance of the rims!

3.The special material formula makes the rim stiffer, the quality more stable, and it will not deform after long-term use (general rims will deform in about a year, which will appear as bulging spoke holes, bending, and deflection of the rim)

4.The unique production process optimizes the finished product and further enhances the strength of the rim.

5.Lighter rims are made of T700 and T800, with reinforcements at key positions, which not only reduces weight but also increases strength, achieving both rigidity and softness.

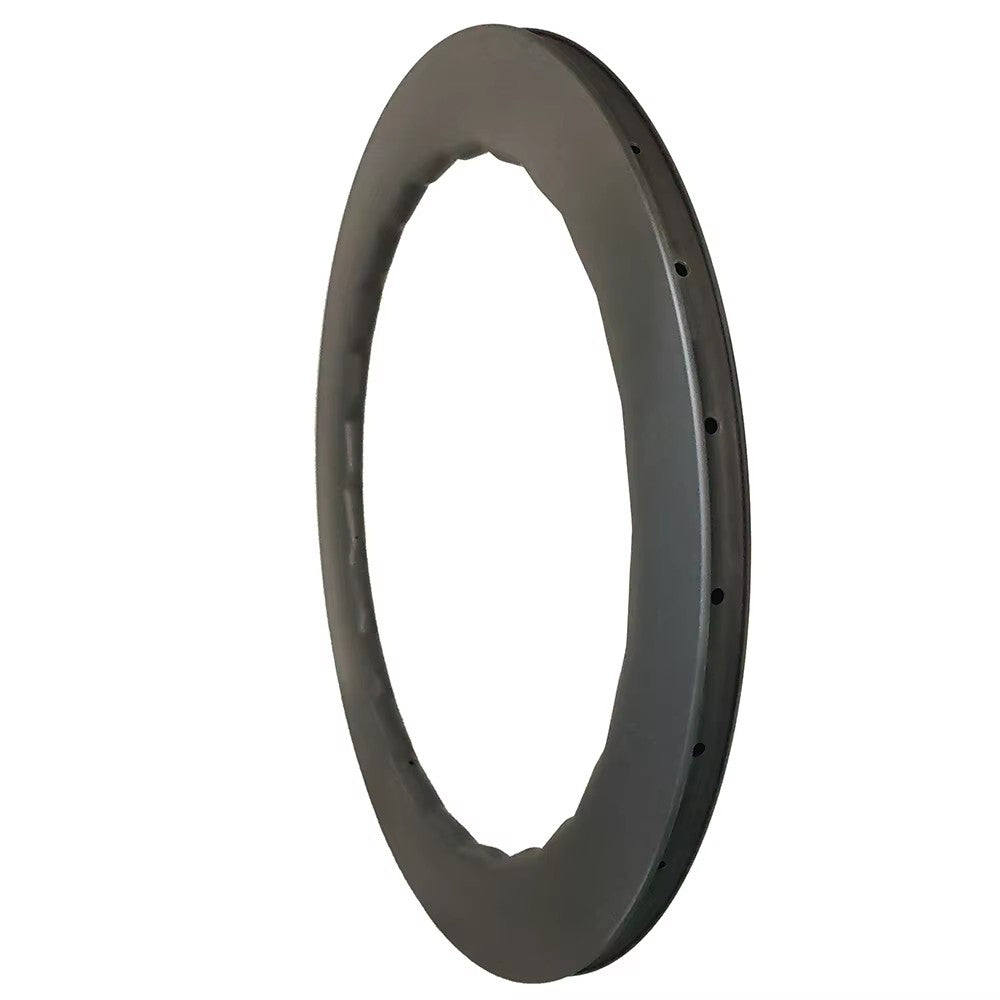

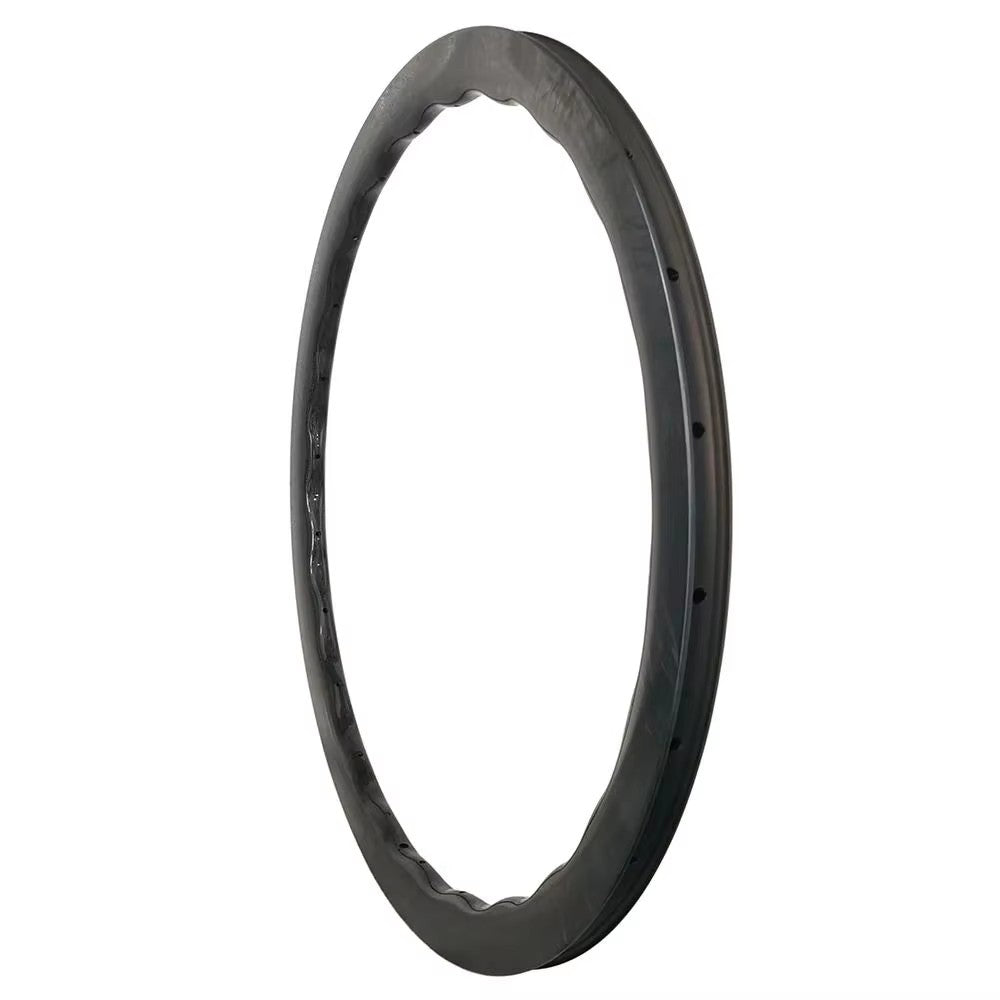

6.Compared to the smooth sidewalls of traditional rims, the new waved profile features reduced aero drag, boosted lateral stiffness, and greater impact resistance.

7.Nearly every wheelset that comes from DFS is made to order for each customer’s exact specifications. That means that you get the wheelset you want. We are a trusted manufacturing partner for numerous brands.

8.Rider feedback shows that these laterally stiff rims feel smooth yet responsive, and are FAST!

9.Your experience with DFS doesn’t end when you purchase a wheelset. We are here for you regardless of whether you want to ask a question, need a tech tip, or have a problem you need help with.

10.We don’t claim to be the cheapest option around, but we definitely think we are the best value.

Rim Model:28mm wide series
* Material: Toray T700 & T800 T1000 Premium Carbon Fiber
* Size: 29”/700C (ETRTO 622mm)
* Intended Use: Road / Triathlon / TT / Cyclocross

*Bead Type: Clincher/tubuless/tubular (hookless/hooked)
* Tubeless Capable: Yes

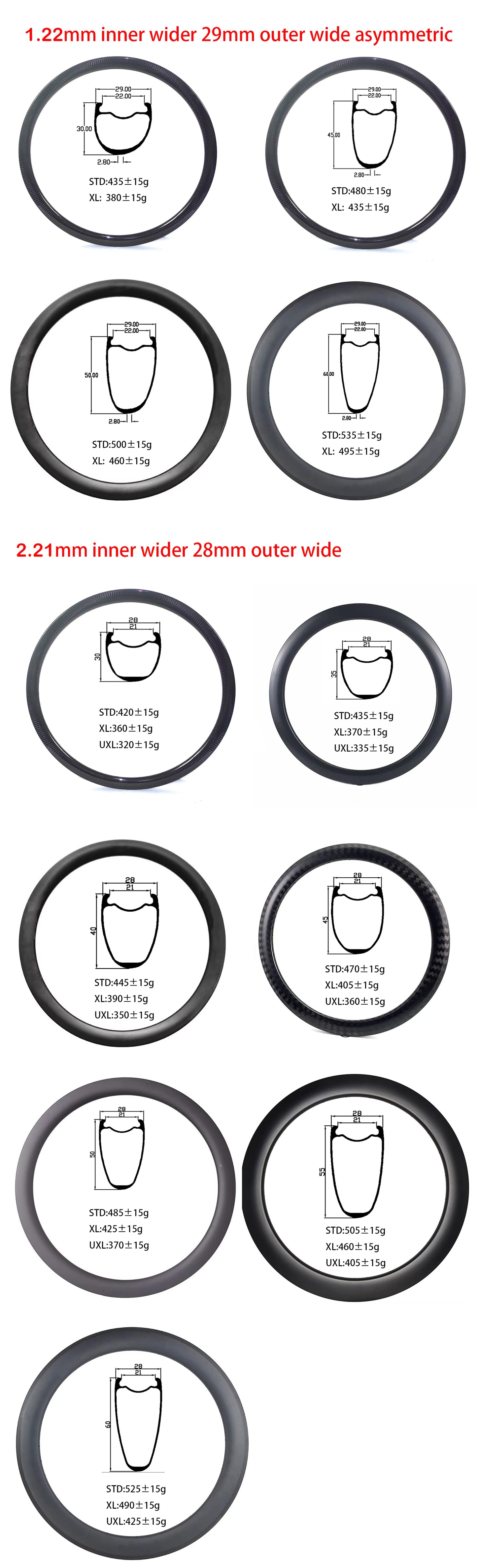

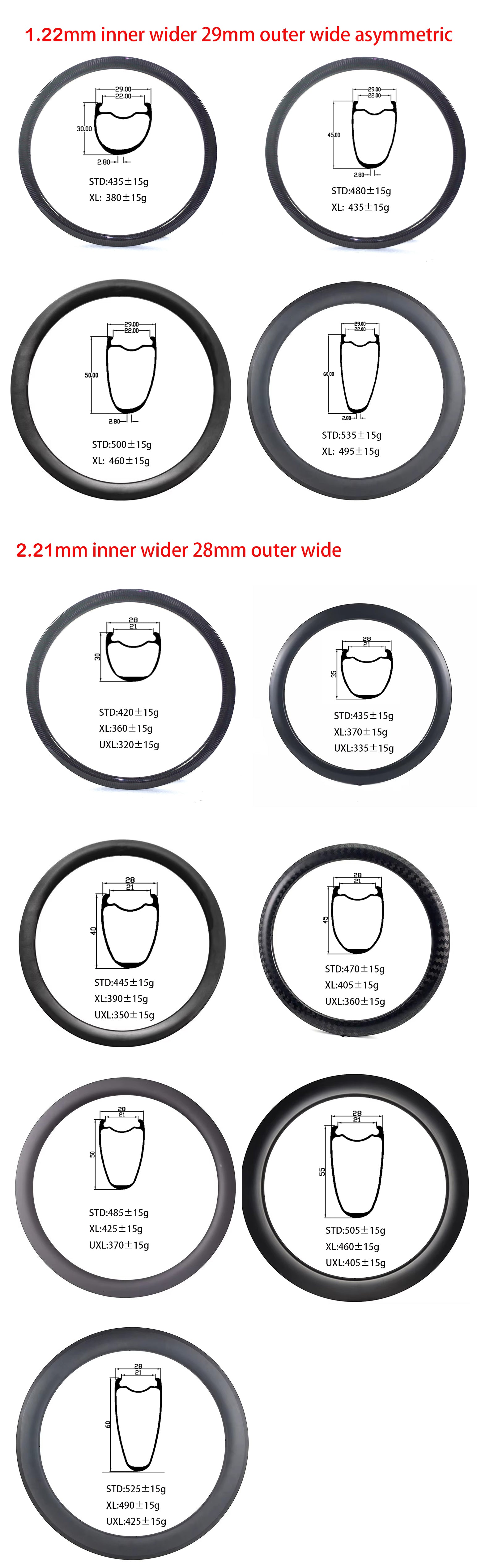

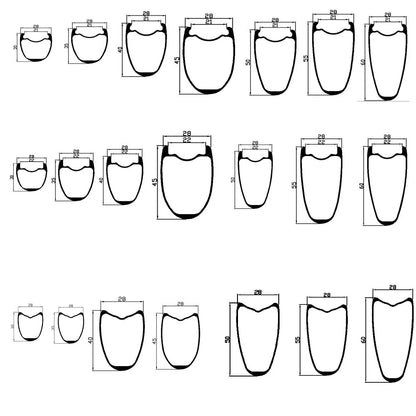

* Inner/Outer Width: 16/23mm and 18/25mm

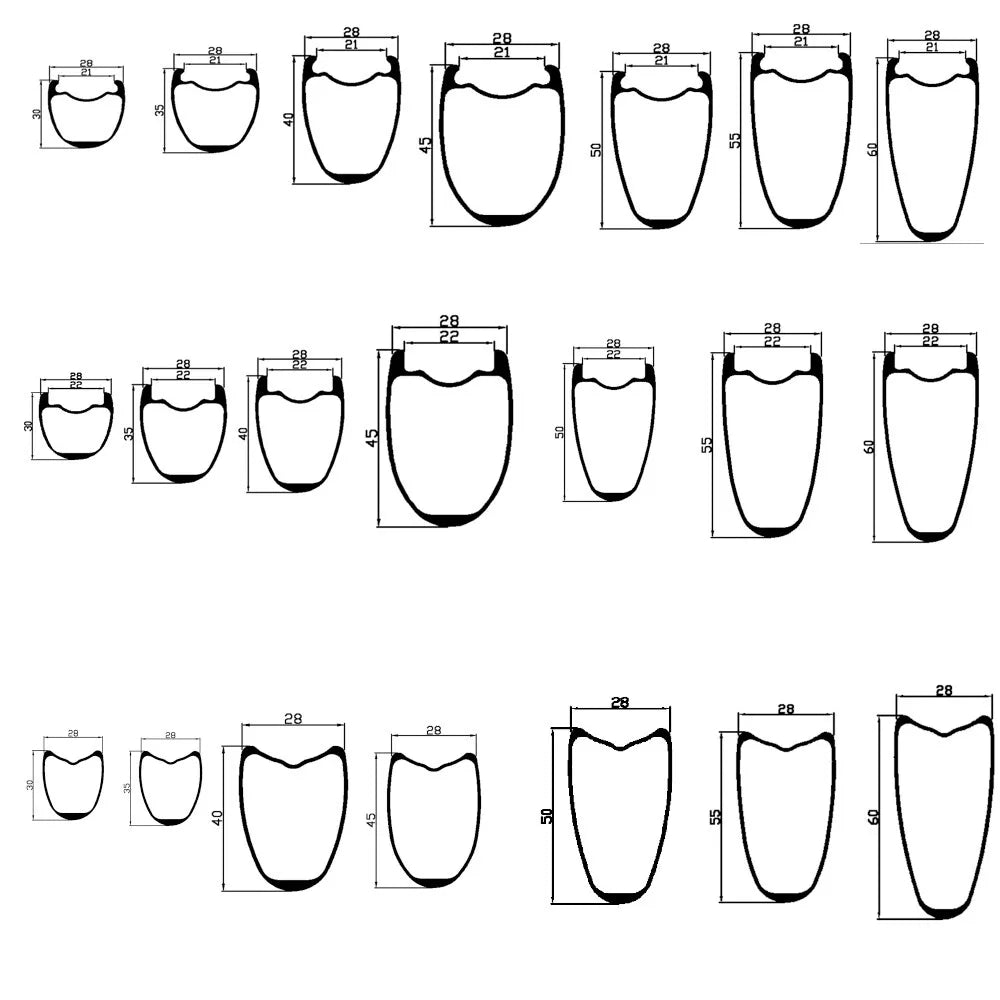

* Depth: 30/35/40/45/50/55/60mm
* ERD:580/570/560/550/540/530/520mm (not including nipple head dimension)
* Rim Weight: 50mm depth Standard 440+/-15g, XL 440+/-15g UXL 375±15g
* Profile: Symmetric(Asymmetric (2.8mm))
* Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, XL/UXL Lighter 90kg/ 198lbs
* Spoke Hole Angle: ±8°
* Spoke Tension: 120~135kgf front disc side and rear drive side
* Max Tire Pressure (with 28C): Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48 bar
* Recommended Tire Width: 23C~42C

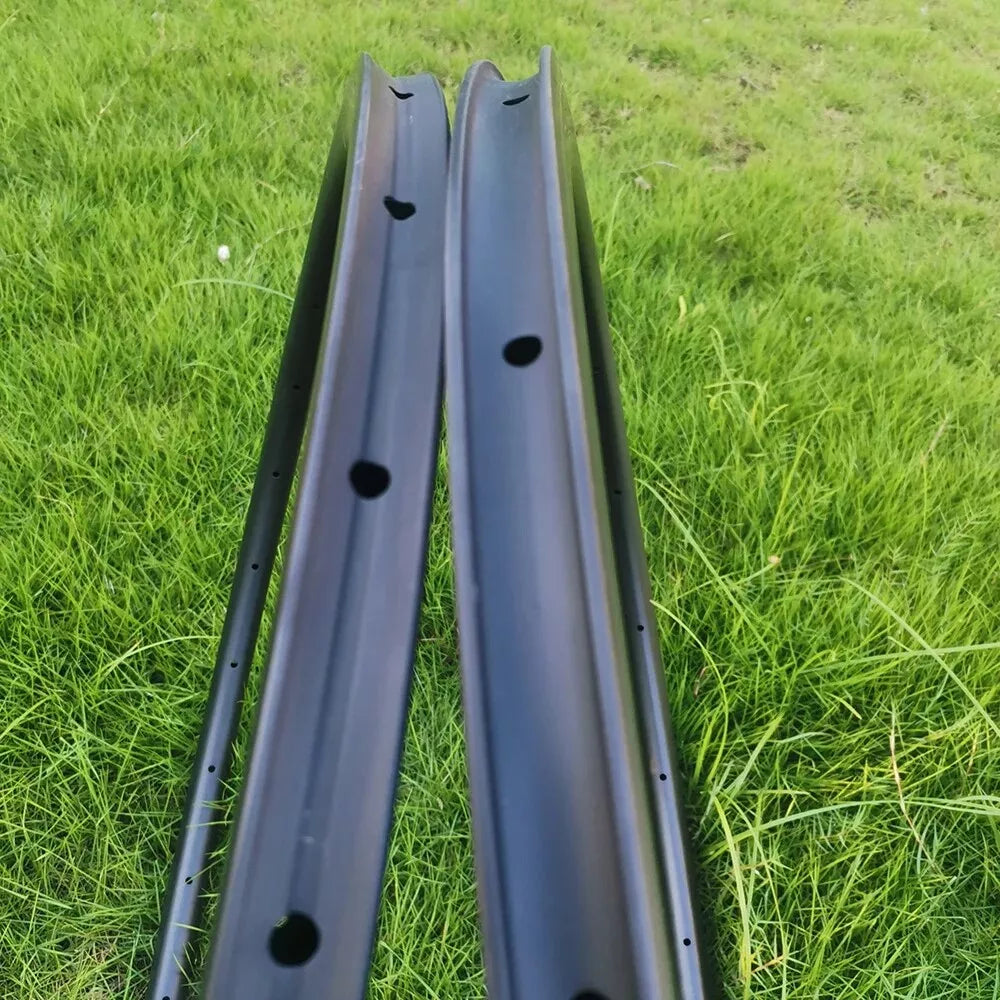

* Hole:16, 18, 20, 24, 28, 32, 36H

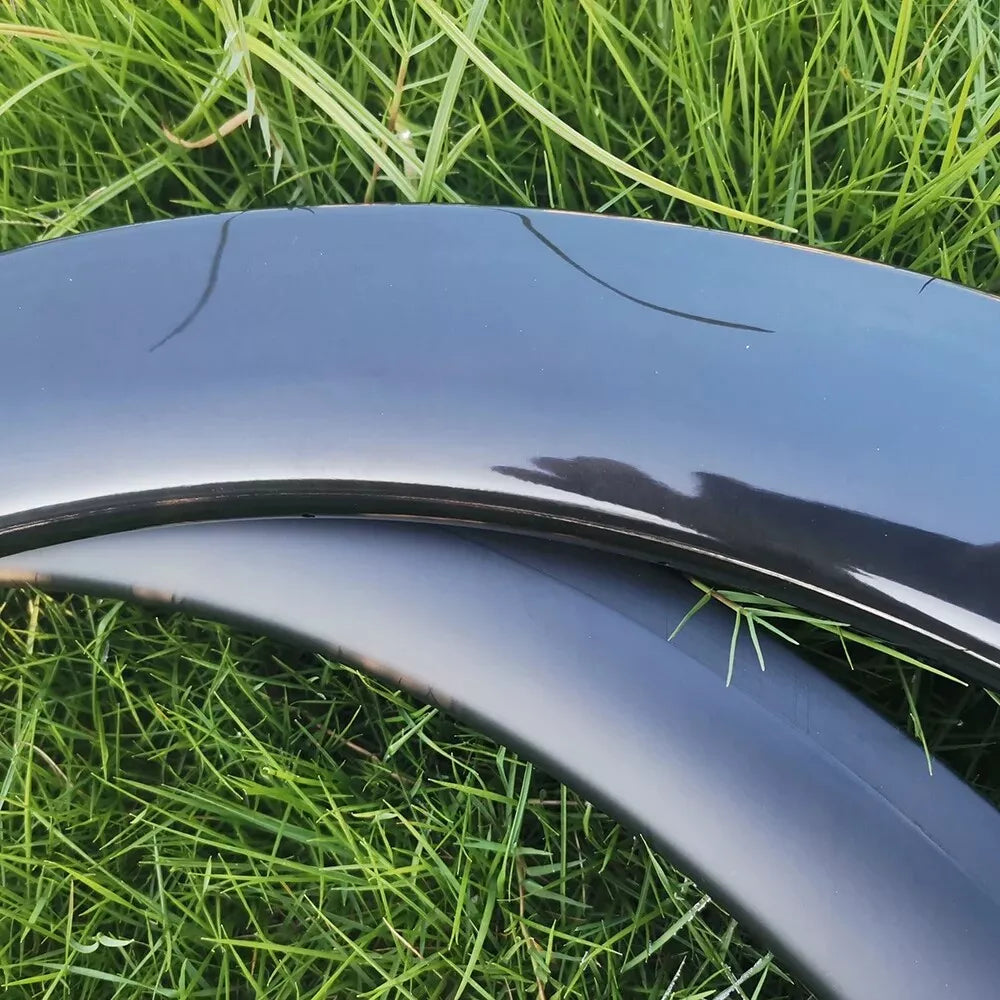

* Finish: Matte, Glossy
* Weave: UD, 3K, 3K Twill, 12K, 12K Twill , and custom
* Weight Style: STD(Standard), XL (lighter),UXL(lightest)
* Warranty:2years
