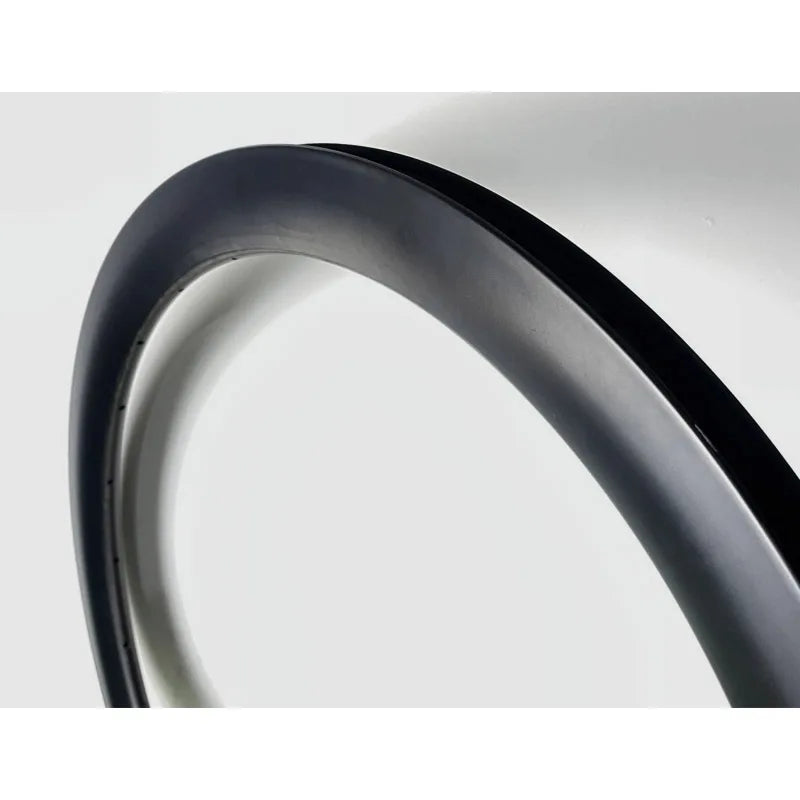

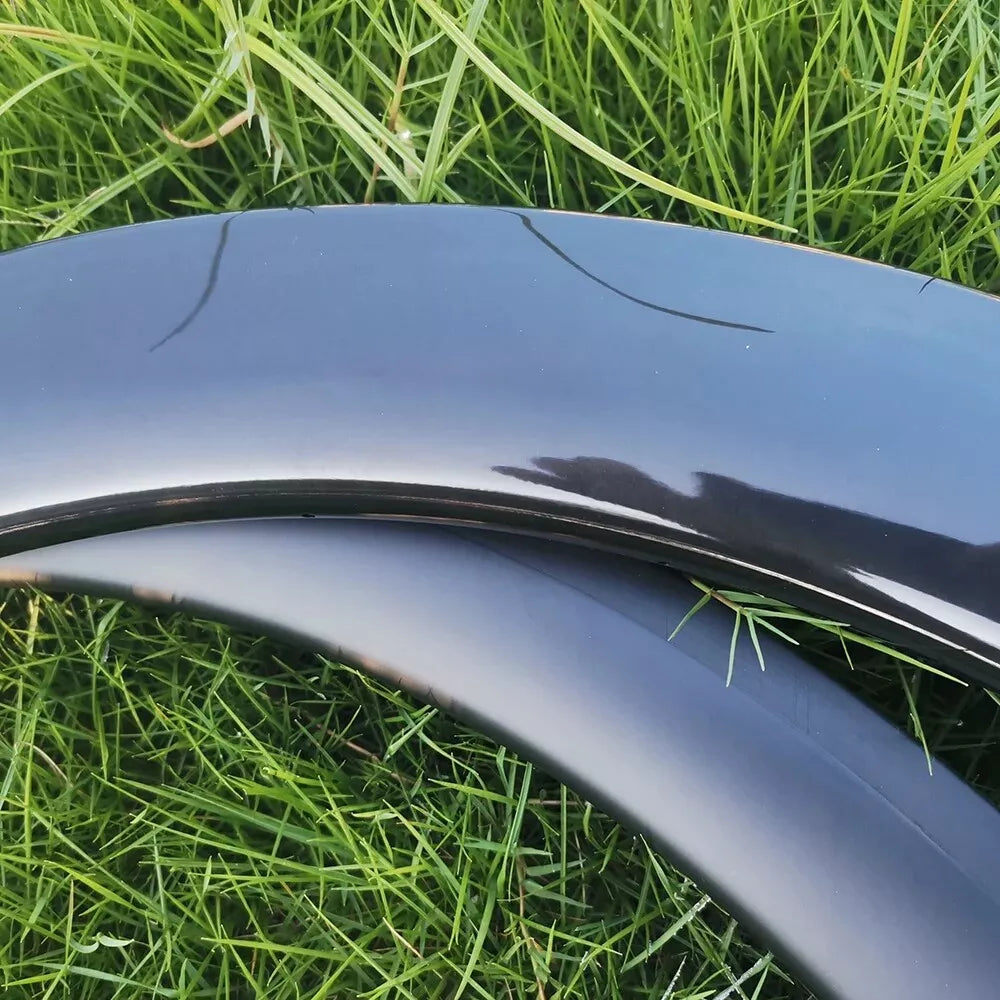

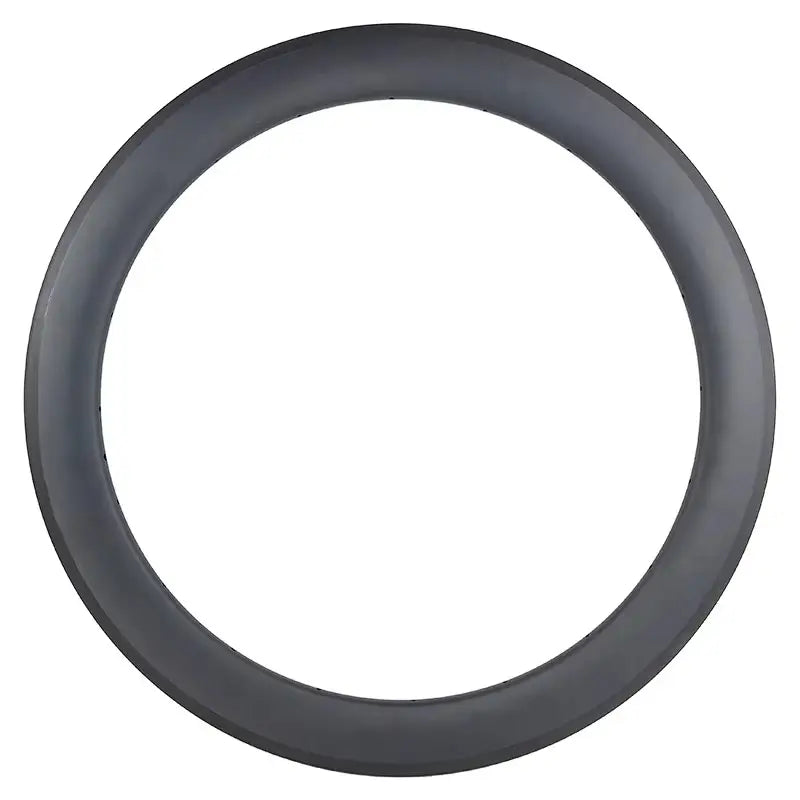

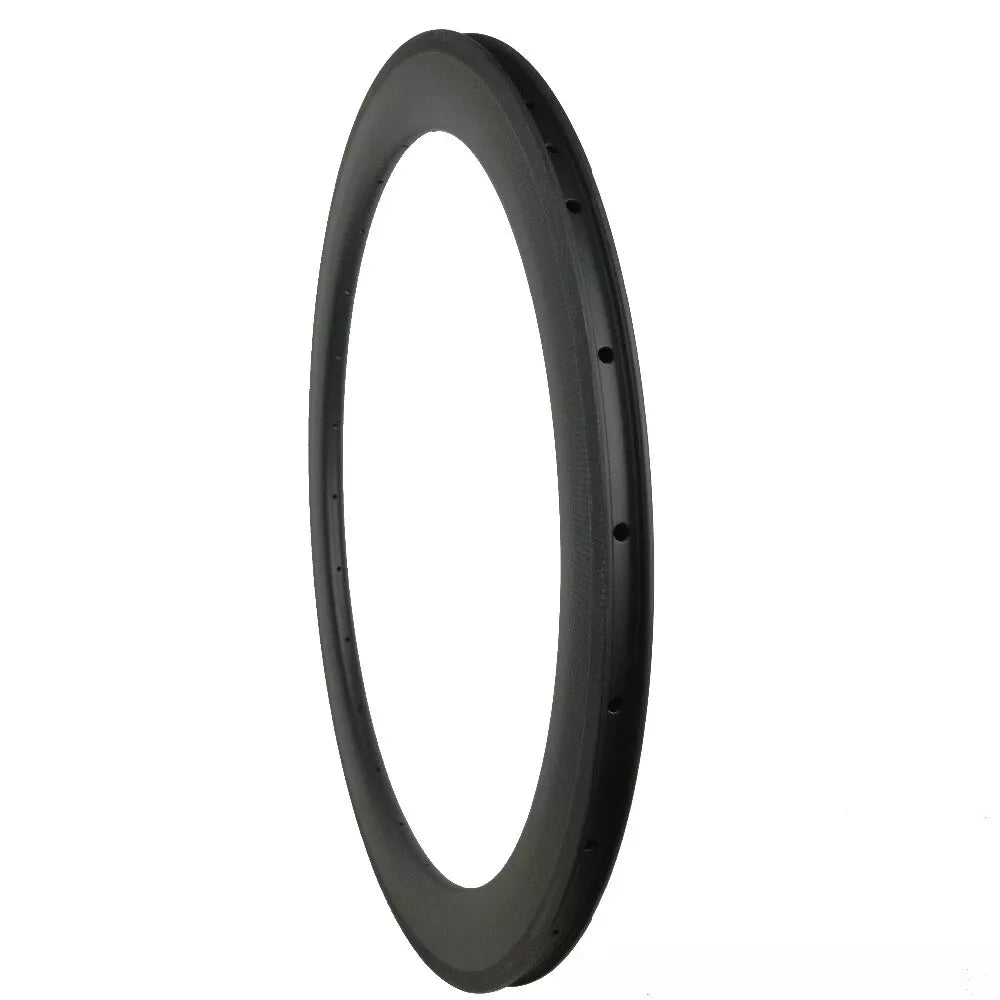

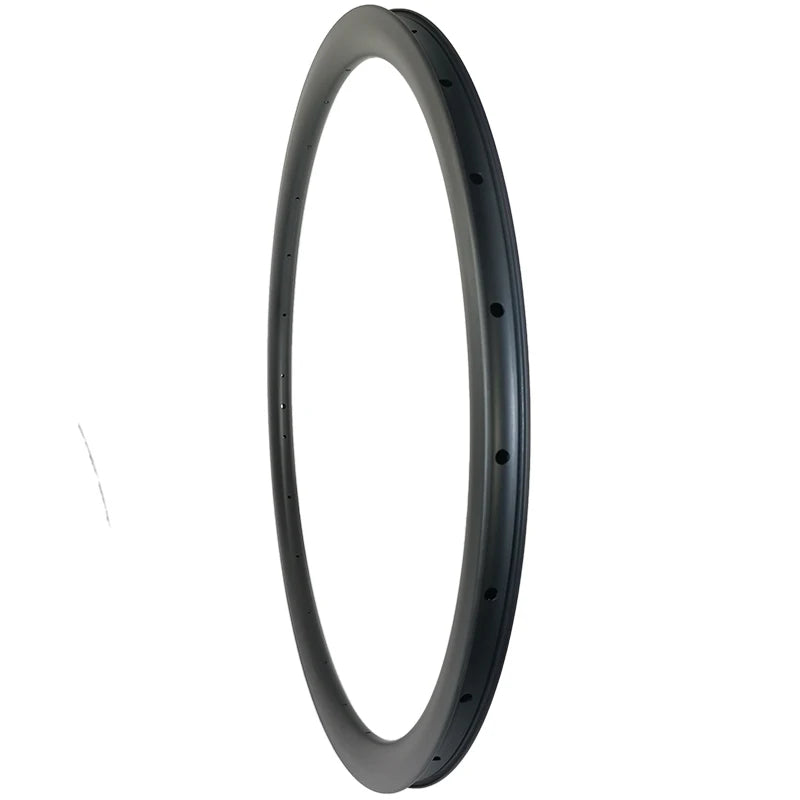

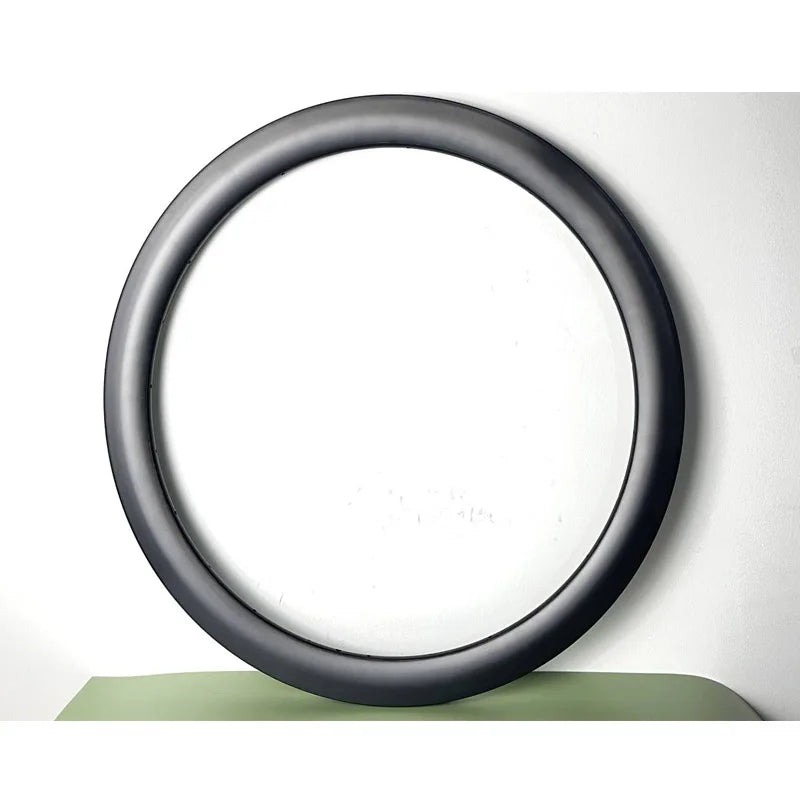

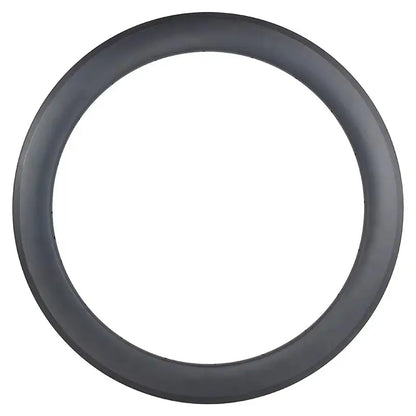

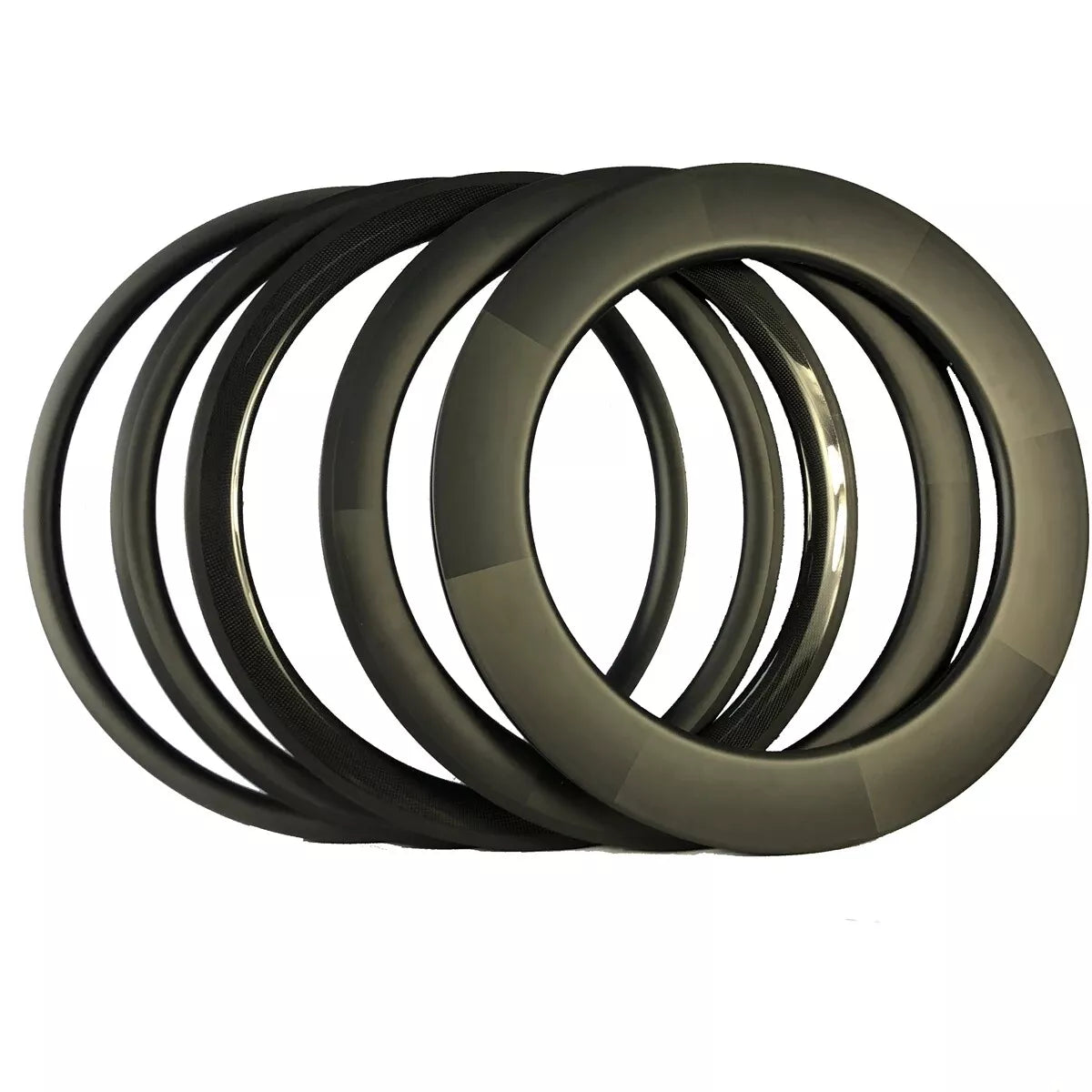

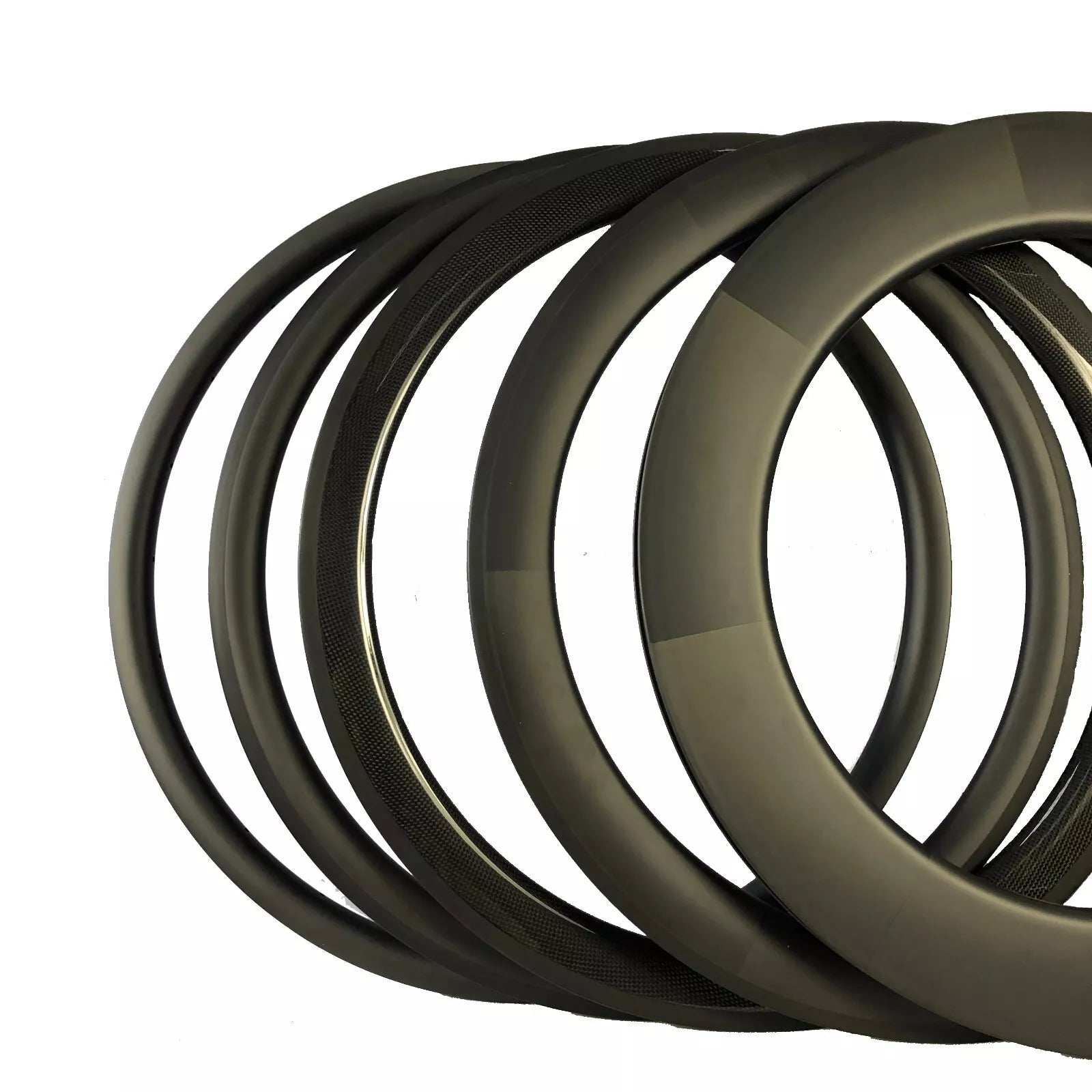

Carbon road bike rim 35/38/45/50/55/60188mm depth Tubeless Rim 23/25mm wide Road/track/TT Bike T800/T1000 Full Carbon Fibre Bicycle Wheelset Rim

Why  Buy carbon rim from  DFS?

Carbon fiber rims offer the following core advantages compared to carbon rims from other manufacturers:

1. Superior Stiffness

   Utilizes high-modulus carbon fiber materials, significantly improving the strength-to-weight ratio

 Optimized lateral stiffness, resulting in minimal deformation during pedaling and more direct, efficient power transfer

    Ensures stability during high-speed riding and aggressive handling

2. Enhanced Shock Absorption

   - Unique carbon fiber layering design effectively absorbs road vibrations

   - Delivers a smoother riding experience, reducing fatigue on long-distance rides

   - Balances competitive performance with comfort

3. Exceptional Durability

   - Advanced manufacturing processes ensure excellent fatigue resistance

   - Rigorous quality testing guarantees long-term reliability

   - Lifespan far exceeds that of ordinary carbon rims, reducing replacement frequency and costs

4. Consistent Performance

   - Precision mold forming ensures highly consistent performance across all rims

   - Strict quality control systems eliminate performance variability

   - Provides stable and reliable performance support for competitive riding

These advantages make our carbon fiber rims stand out in terms of performance, comfort, and durability, making them the preferred choice for riders seeking the ultimate cycling experience!

All bike wheels model we may can produce,contact me if you have any question.

Rim Model:23/25mm wide series
* Material: Toray T700 & T800 T1000 Premium Carbon Fiber
* Size: 29”/700C (ETRTO 622mm)
* Intended Use: track/TT/road
* Bead Type: Clincher/tubuless/tubular (hookless/hooked)
* Tubeless Capable: Yes

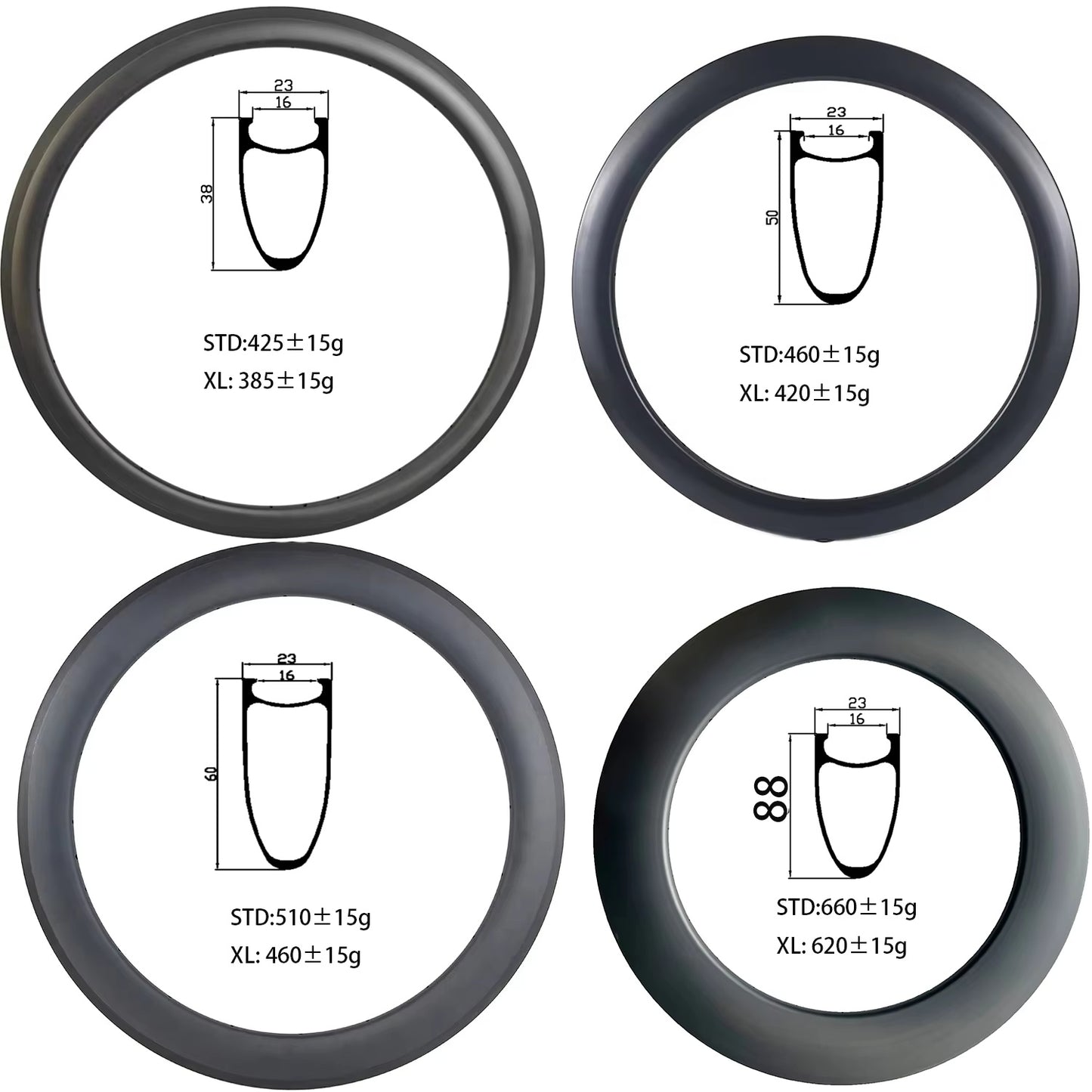

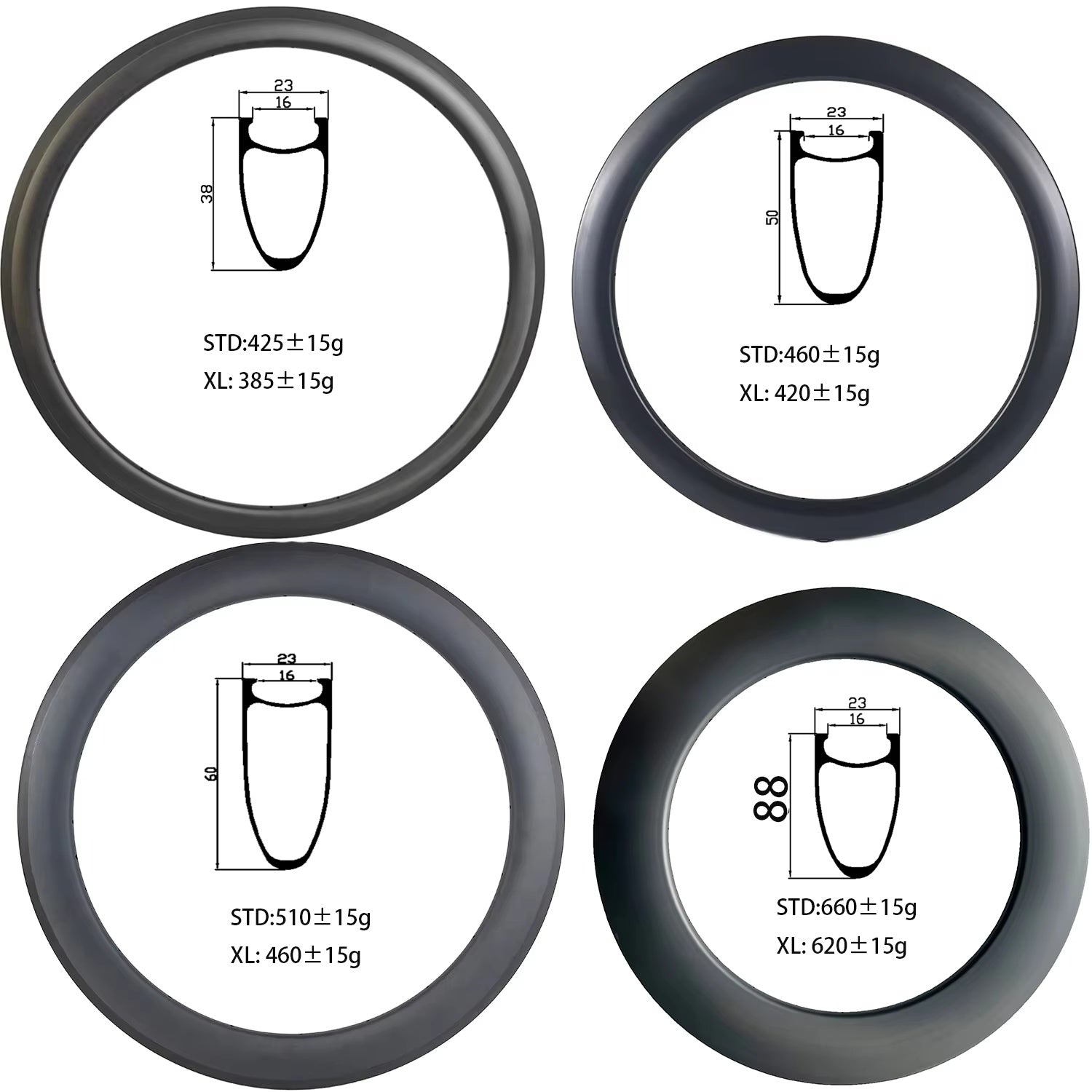

* Inner/Outer Width: 16/23mm and 18/25mm

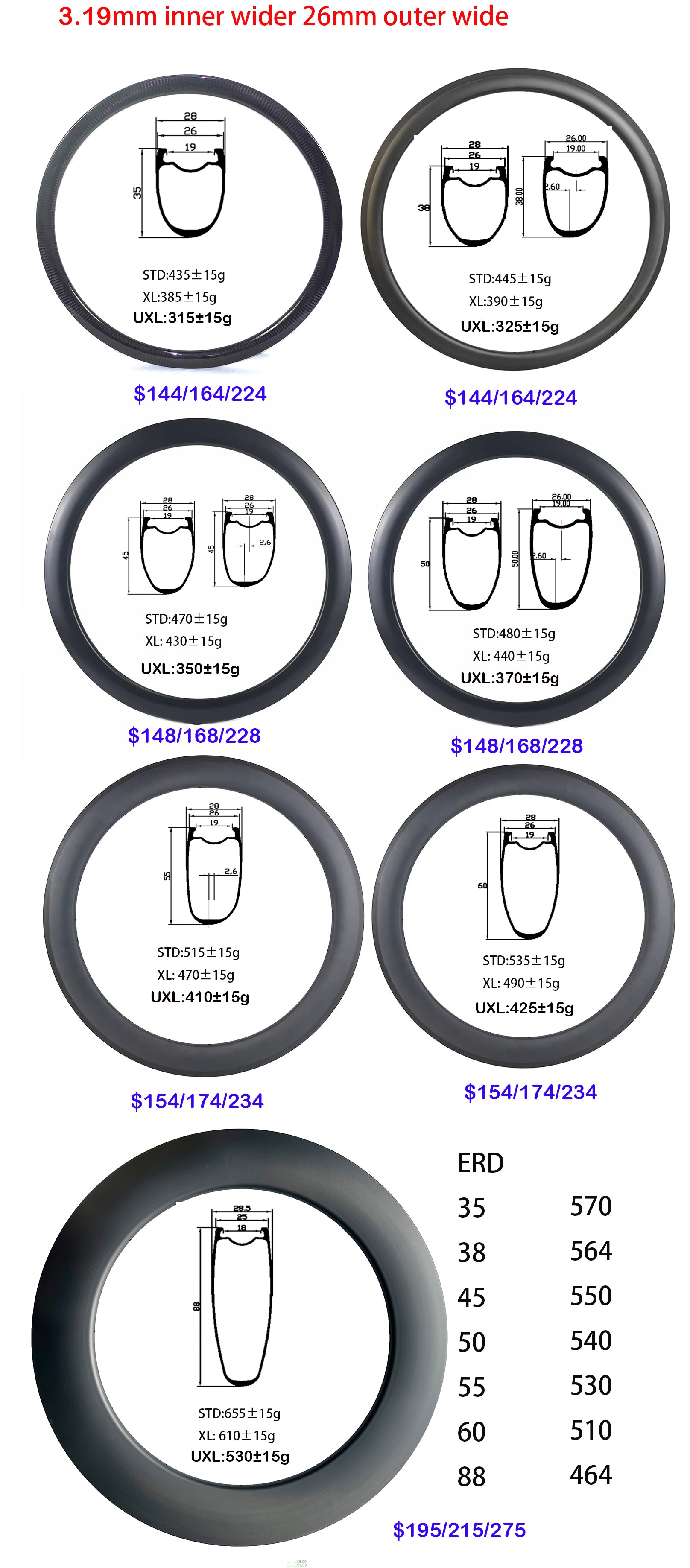

* Depth: 35/38/40/45/50/55/60/88mm
* ERD:570/564/560/550/540/530/510/464mm (not including nipple head dimension)
* Rim Weight: Standard 490+/-15g, XL 440+/-15g
* Profile: Symmetric(Asymmetric (2.8mm))
* Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, XL/UXL Lighter 90kg/ 198lbs
* Spoke Hole Angle: ±8°
* Spoke Tension: 120~135kgf front disc side and rear drive side
* Max Tire Pressure (with 28C): Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48 bar
* Recommended Tire Width: 18C~36C
* Hole:16, 18, 20, 24, 28, 32, 36H
* Finish: Matte, Glossy

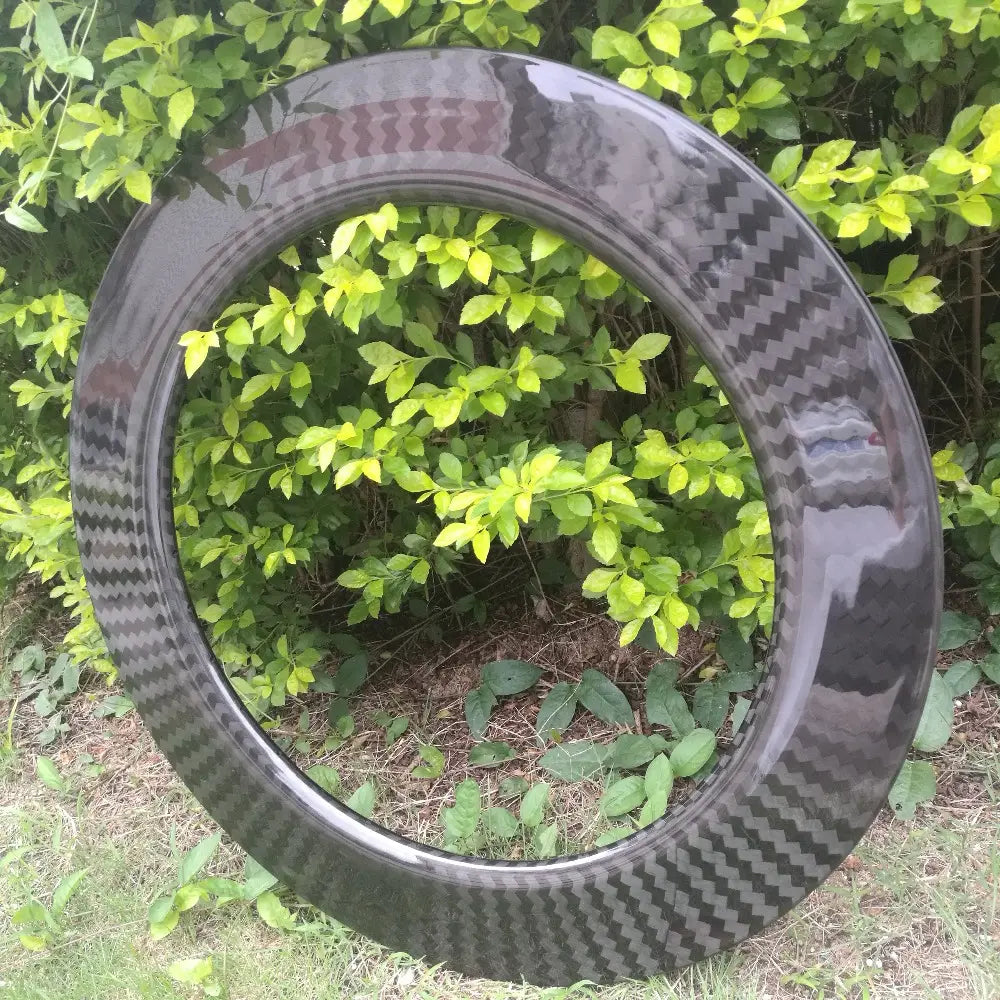

* Weave: UD, 3K, 3K Twill, 12K, 12K Twill , snake skin,and custom
* Brake Track: UD, 3K,
* Weight Style: STD(Standard), XL (lighter),UXL(lightest)
* Warranty:2years
