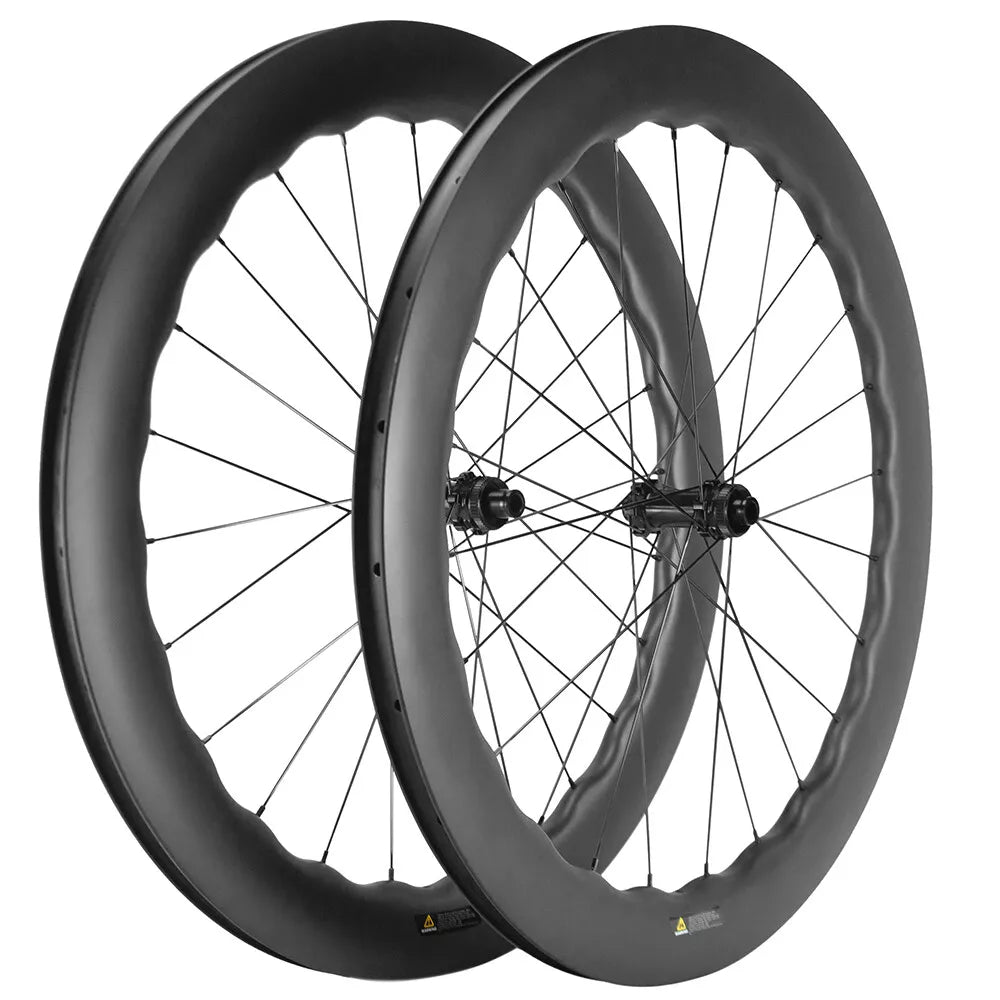

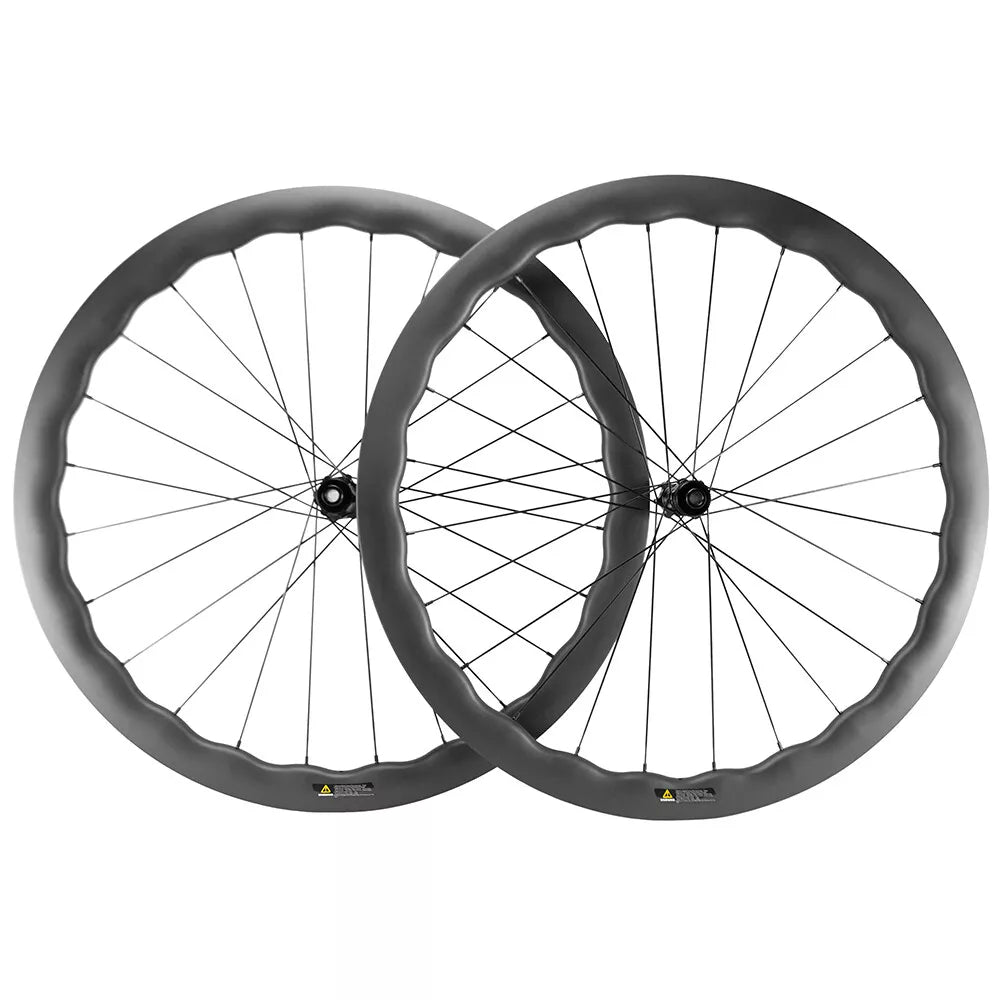

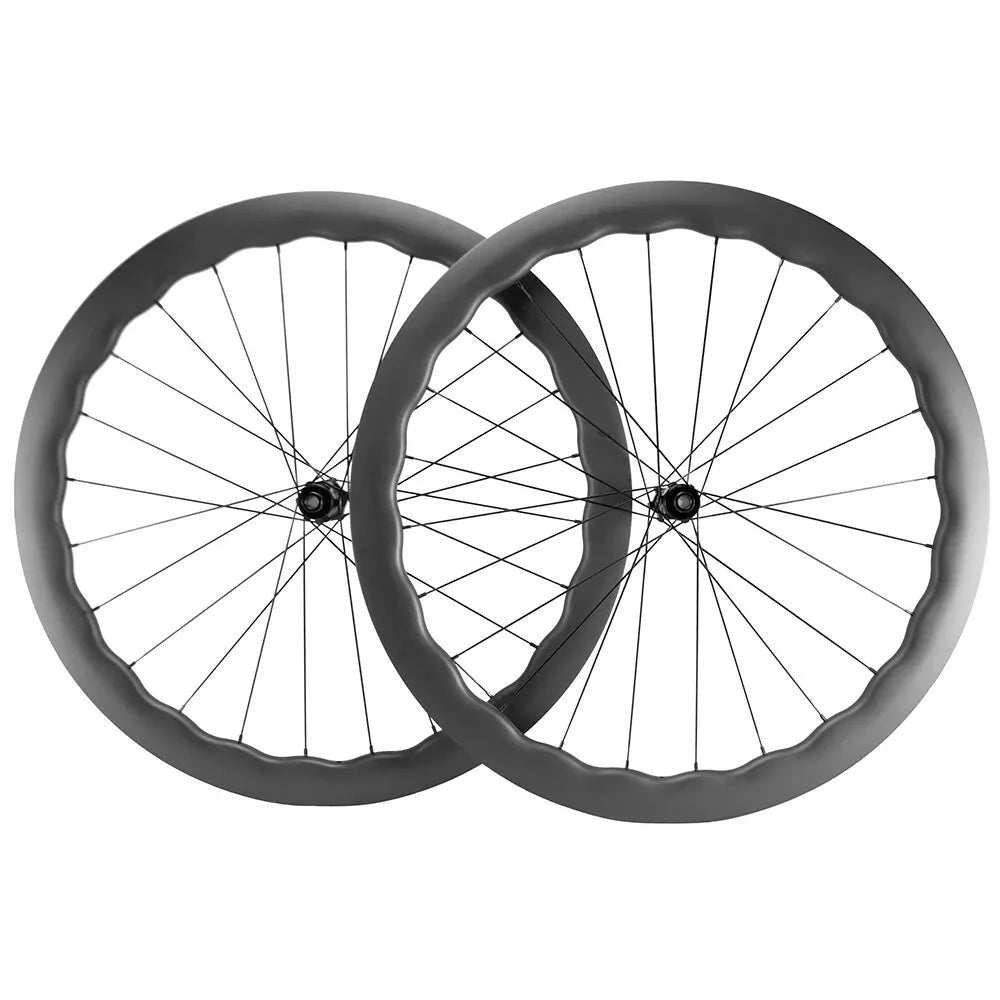

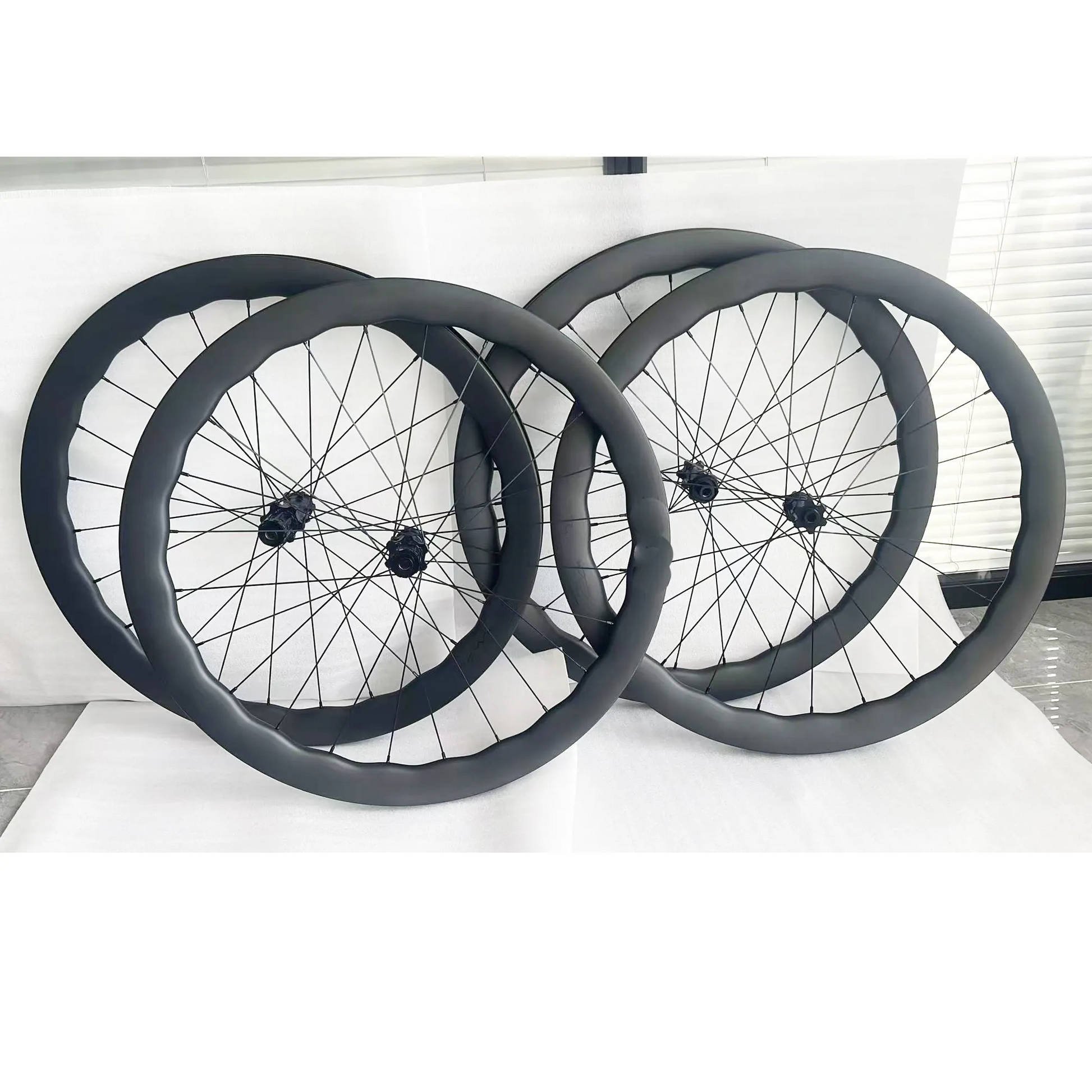

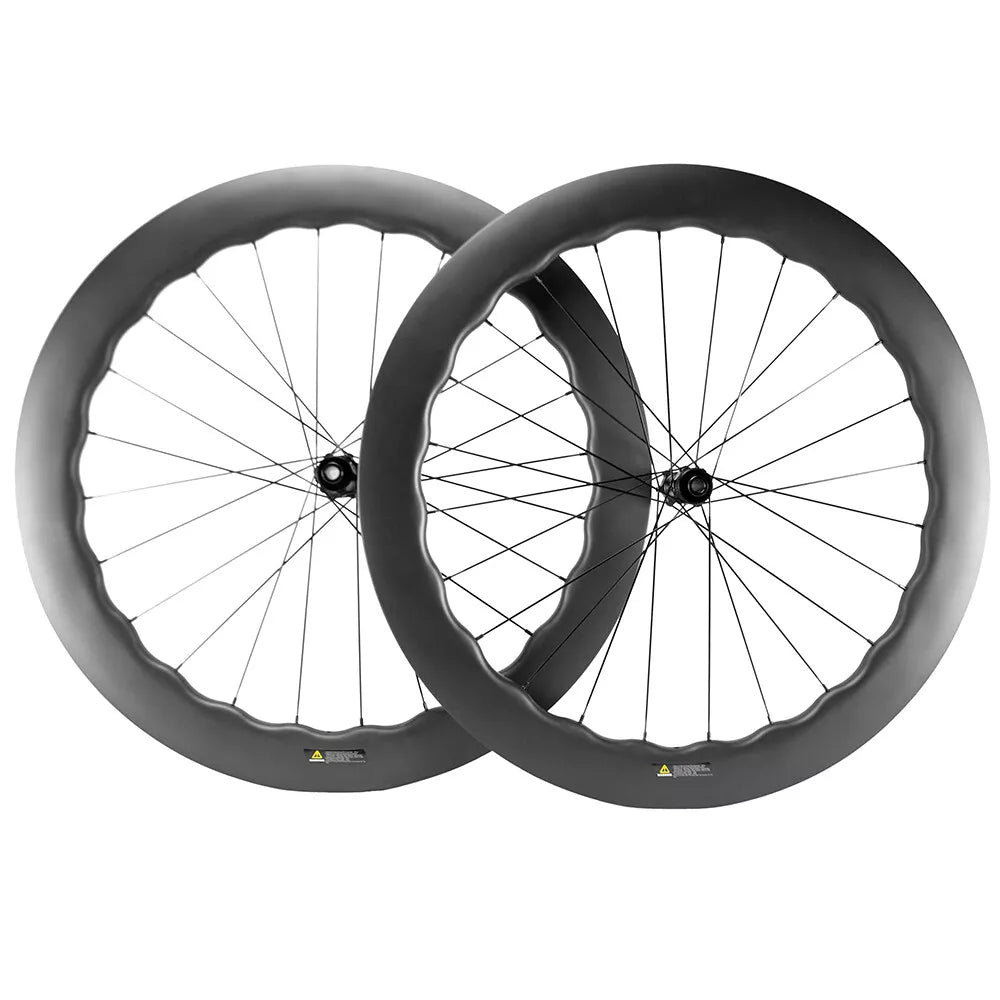

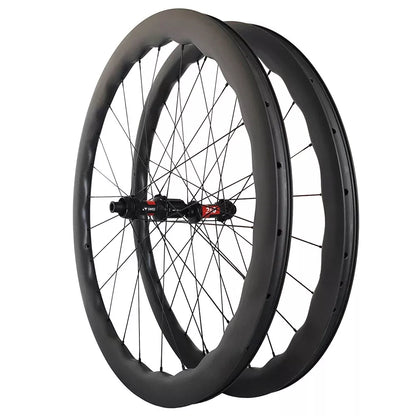

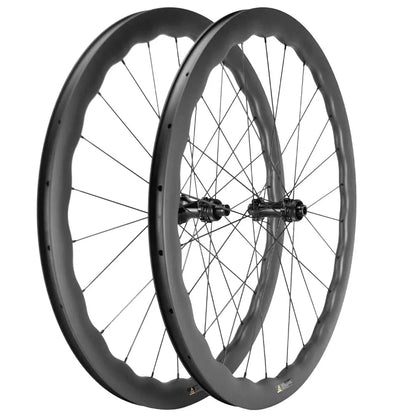

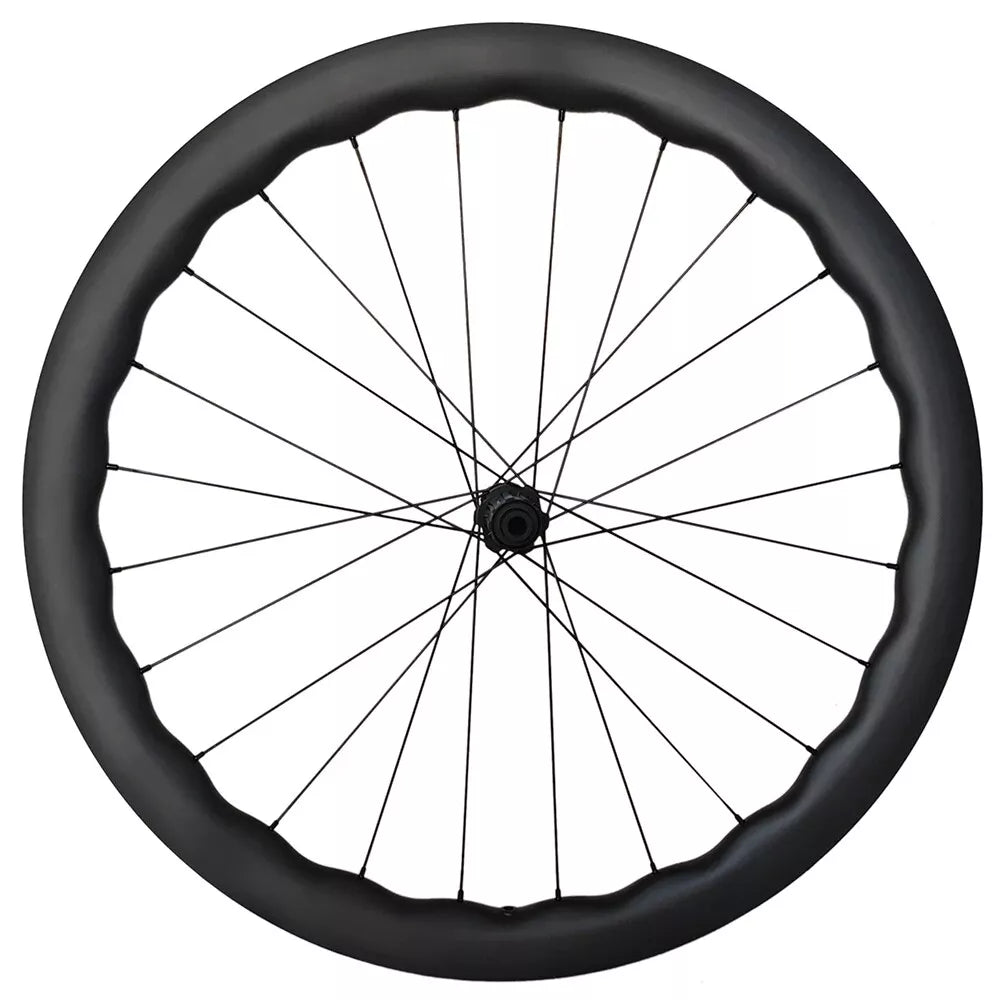

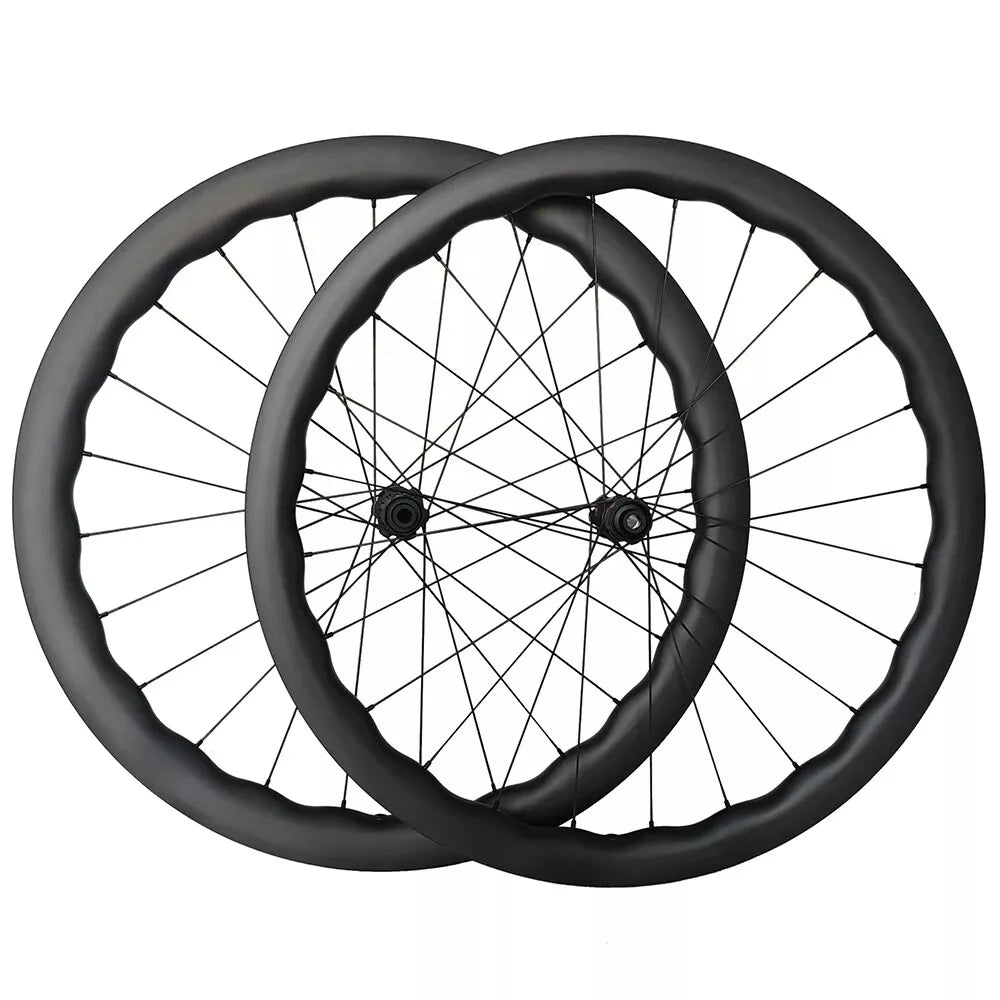

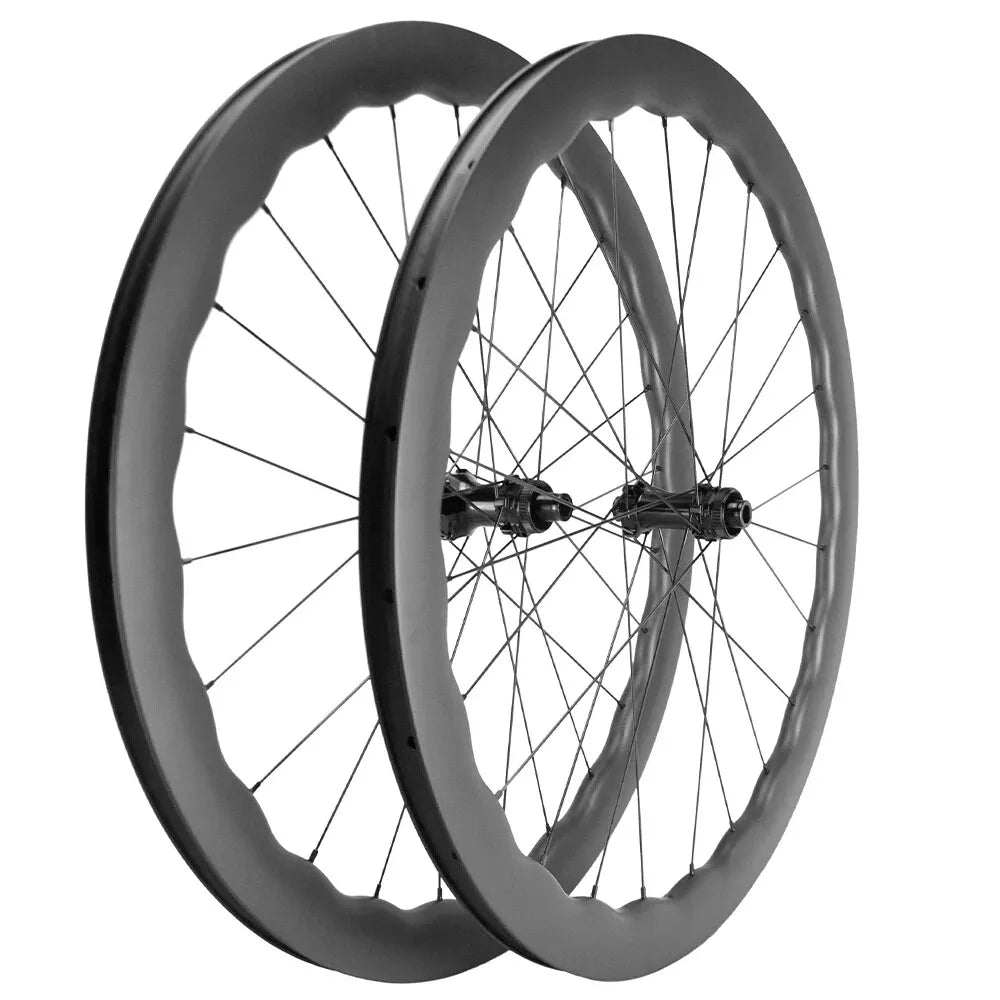

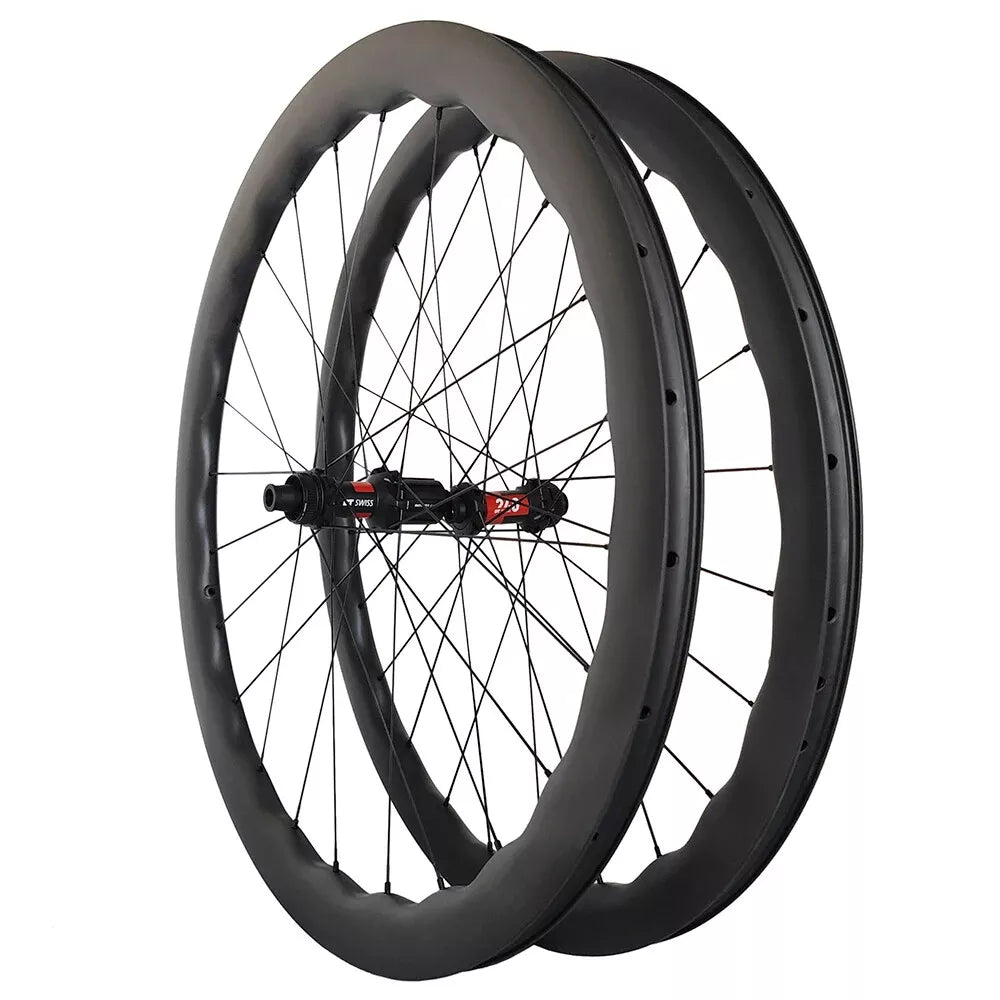

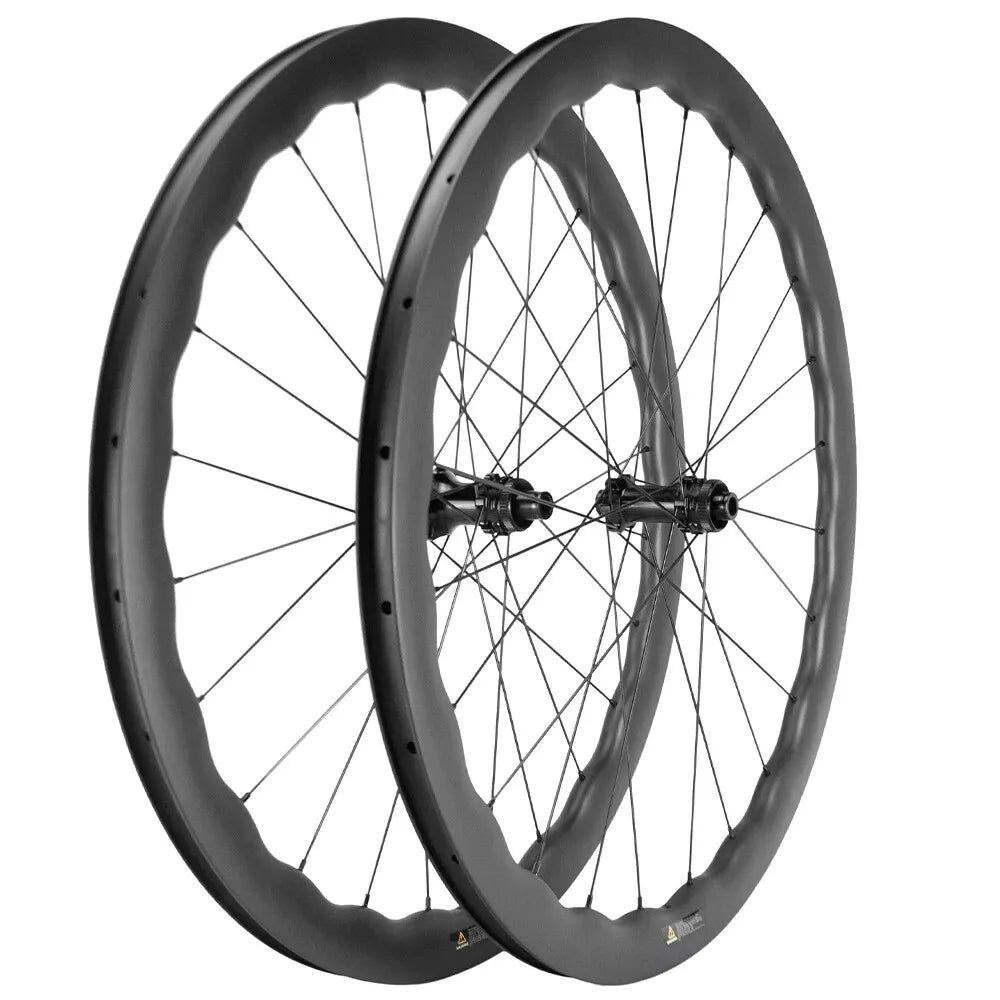

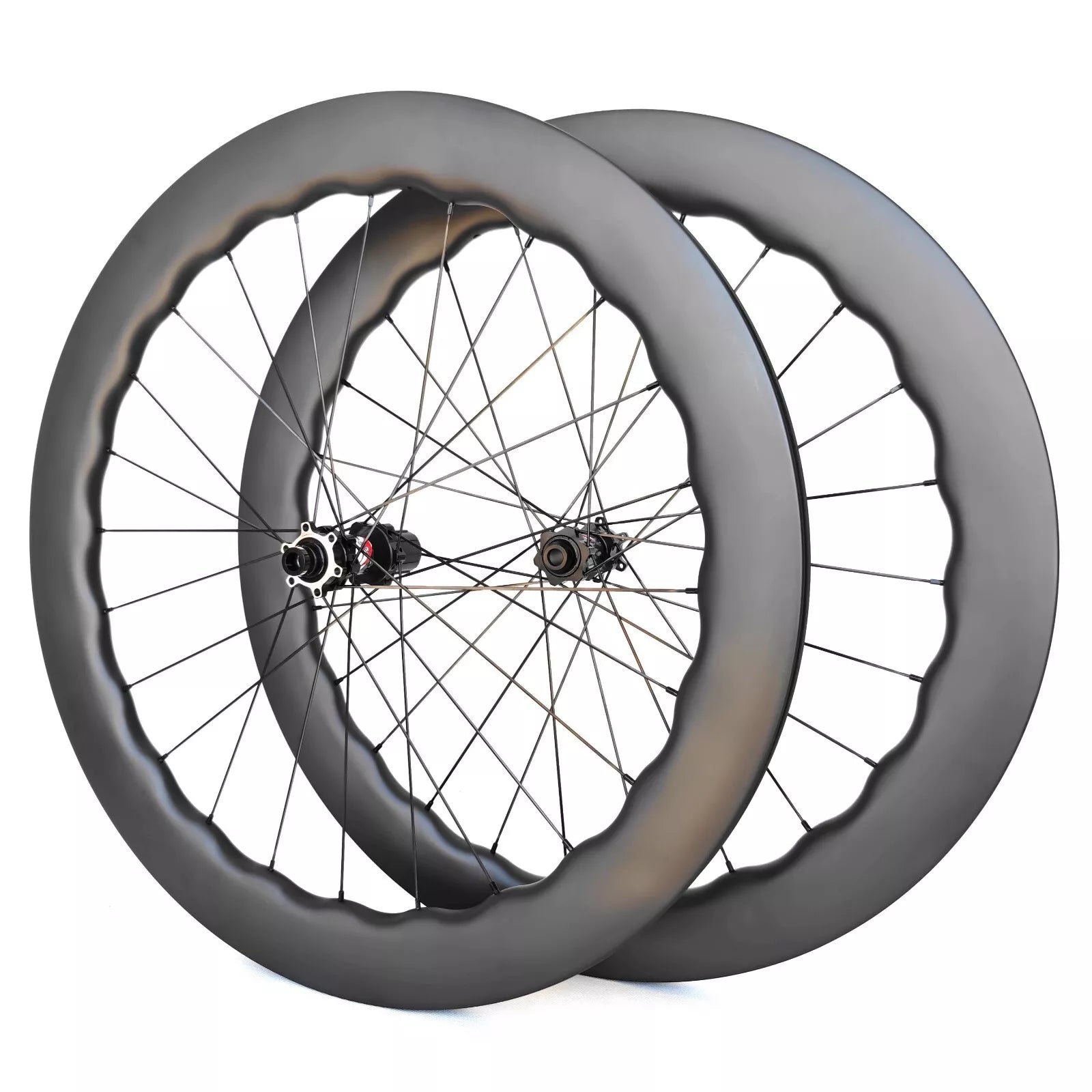

carbon road bike wheels wave WAVE 700c Carbon Wheelset Tubeless Ratchet Hub Quality Bicycle Wave Rim AERO Spoke Center-Lock Disc Brake Wheels
carbon road bike wheels wave WAVE 700c Carbon Wheelset Tubeless Ratchet Hub Quality Bicycle Wave Rim AERO Spoke Center-Lock Disc Brake Wheels
无法加载取货服务可用情况

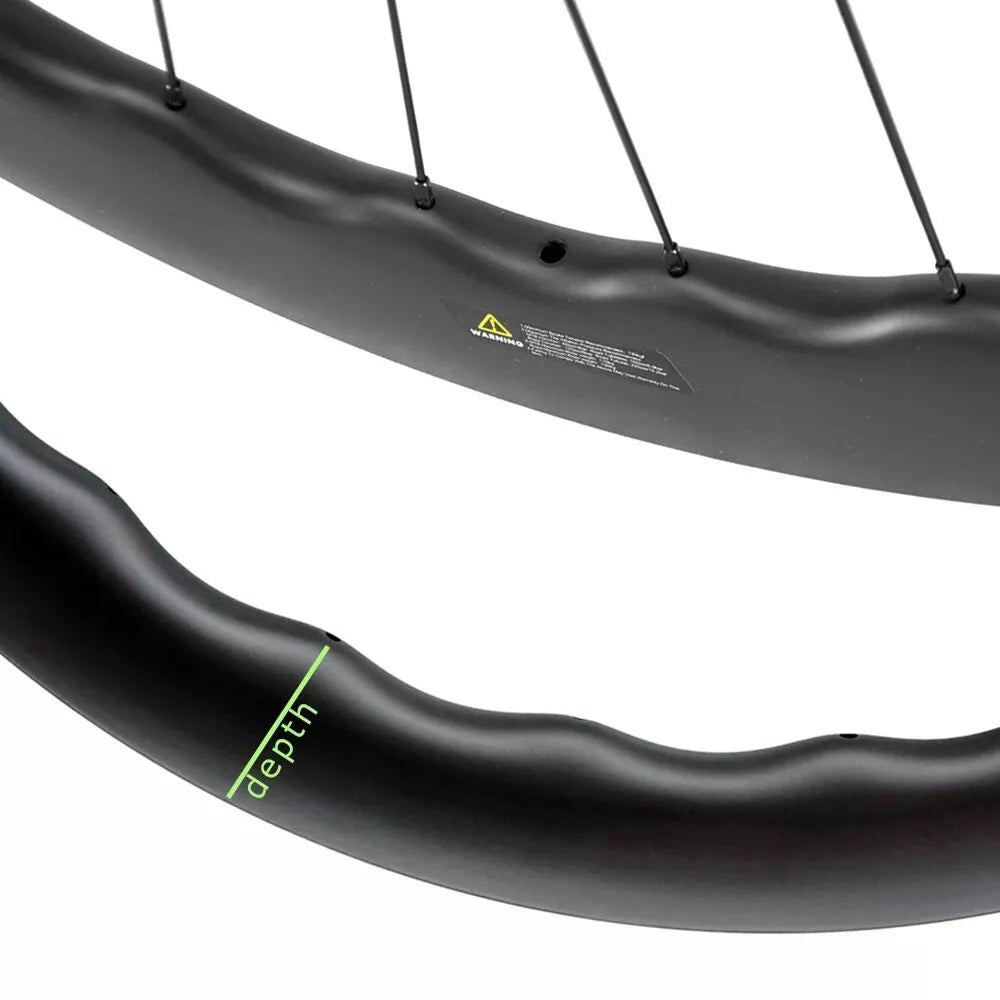

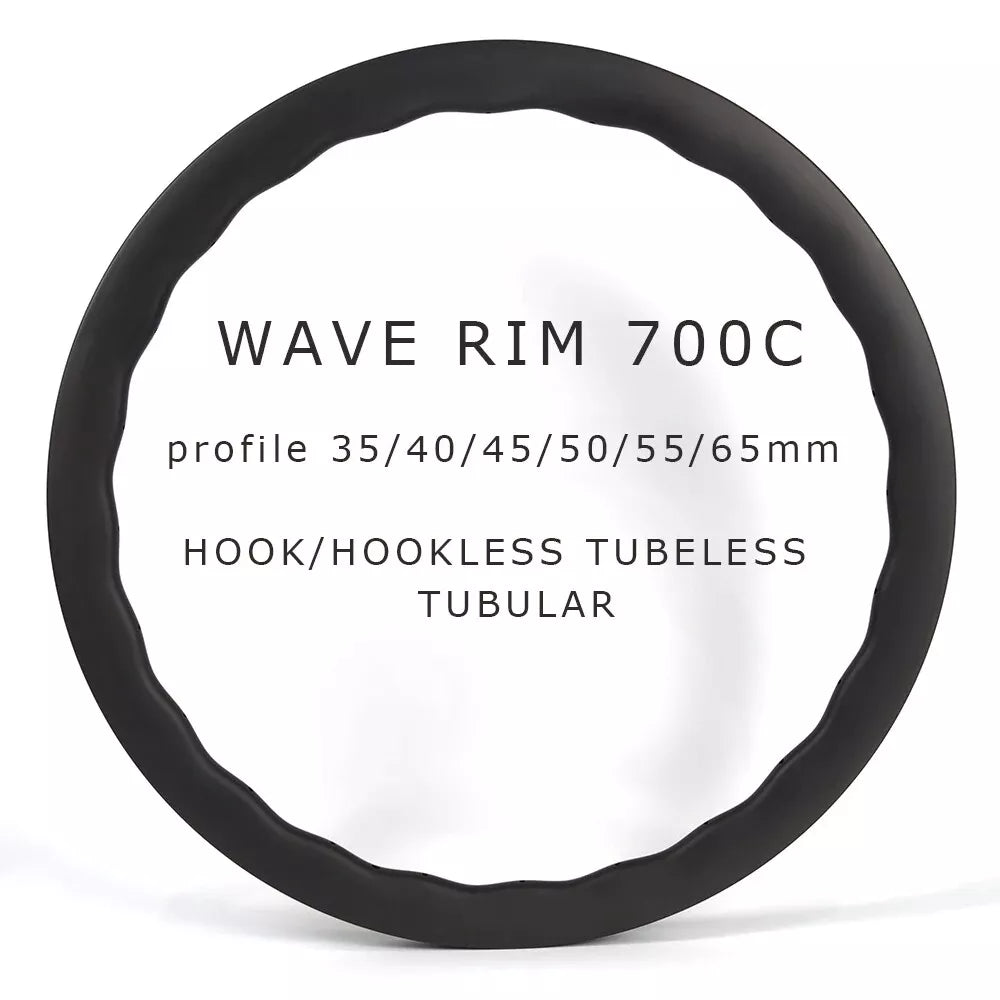

Compared to the smooth sidewalls of traditional rims, the new waved profile features reduced aero drag, boosted lateral stiffness, and have 30% greater impact resistance.
Rider feedback shows that these laterally stiff rims feel smooth yet responsive, and are Faster!
Material:carbon fiber-toray T700
Size:700C
Finish: UD matte
Rim depth:35/40/45/50/55/65mm
Rim width:28mm
Rim type:tubuless
Decal:If you need decals, you can contact me

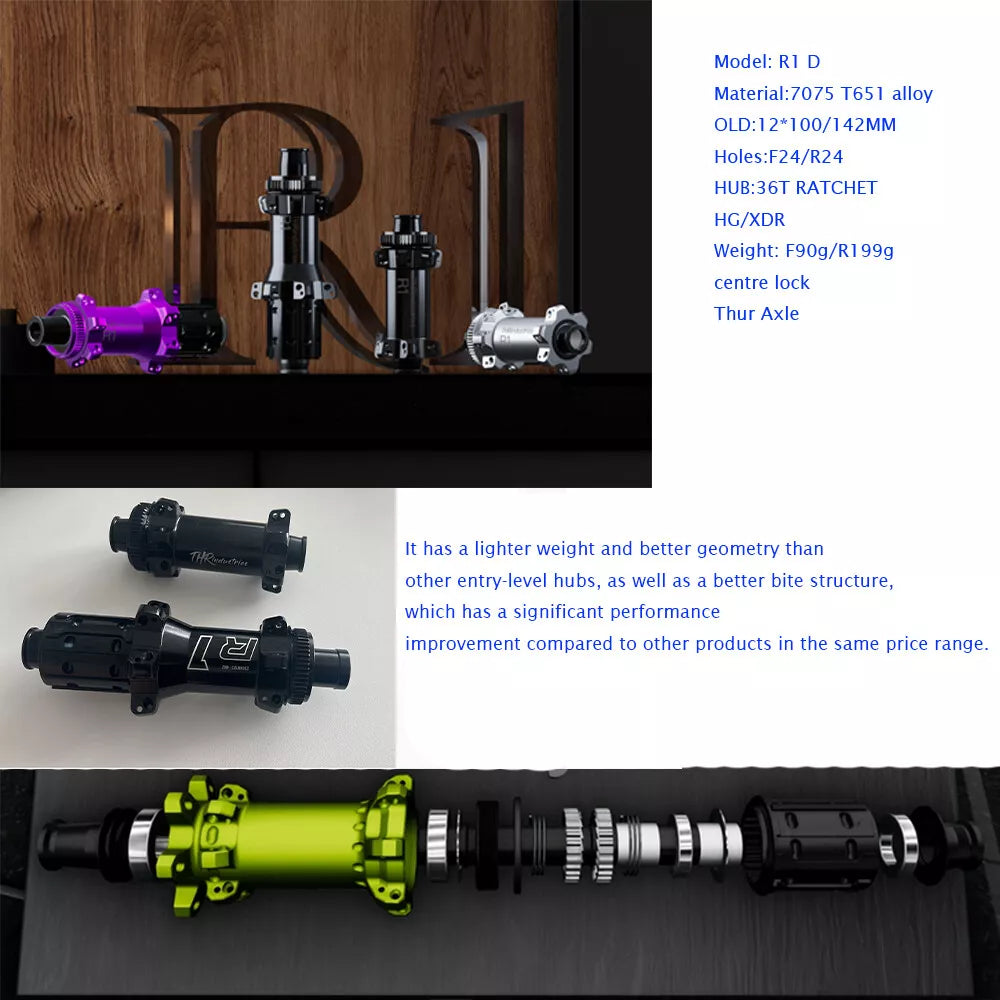

HUb:R1 DISC rachet system only 286g hub black
Center Lock fit with :
Thrux Axle:12*100-12*142
Spoke Holes:24-24H
Spoke color:black

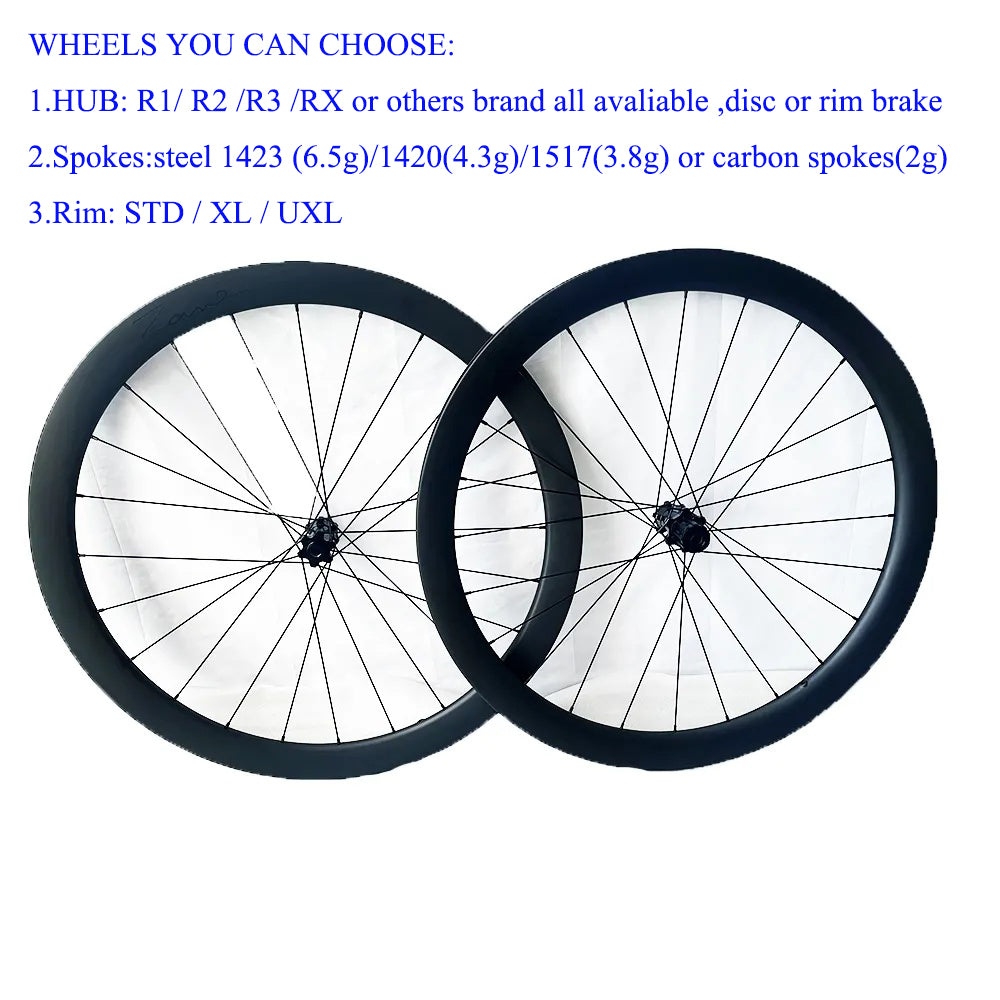

Nipple color:STD rim use 1423 /XL lighter use pillar 1420 spokes ,more light Alloy nipple black
Brake line :No brake line(rim brake with novatec hub)
Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Spoke Tension: 120~135kgf front disc side and rear drive side
Yaw:0.2mm
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Fit frame:for road bike
free hub :HG OR XDR (extra $15)
Warranty:1 year

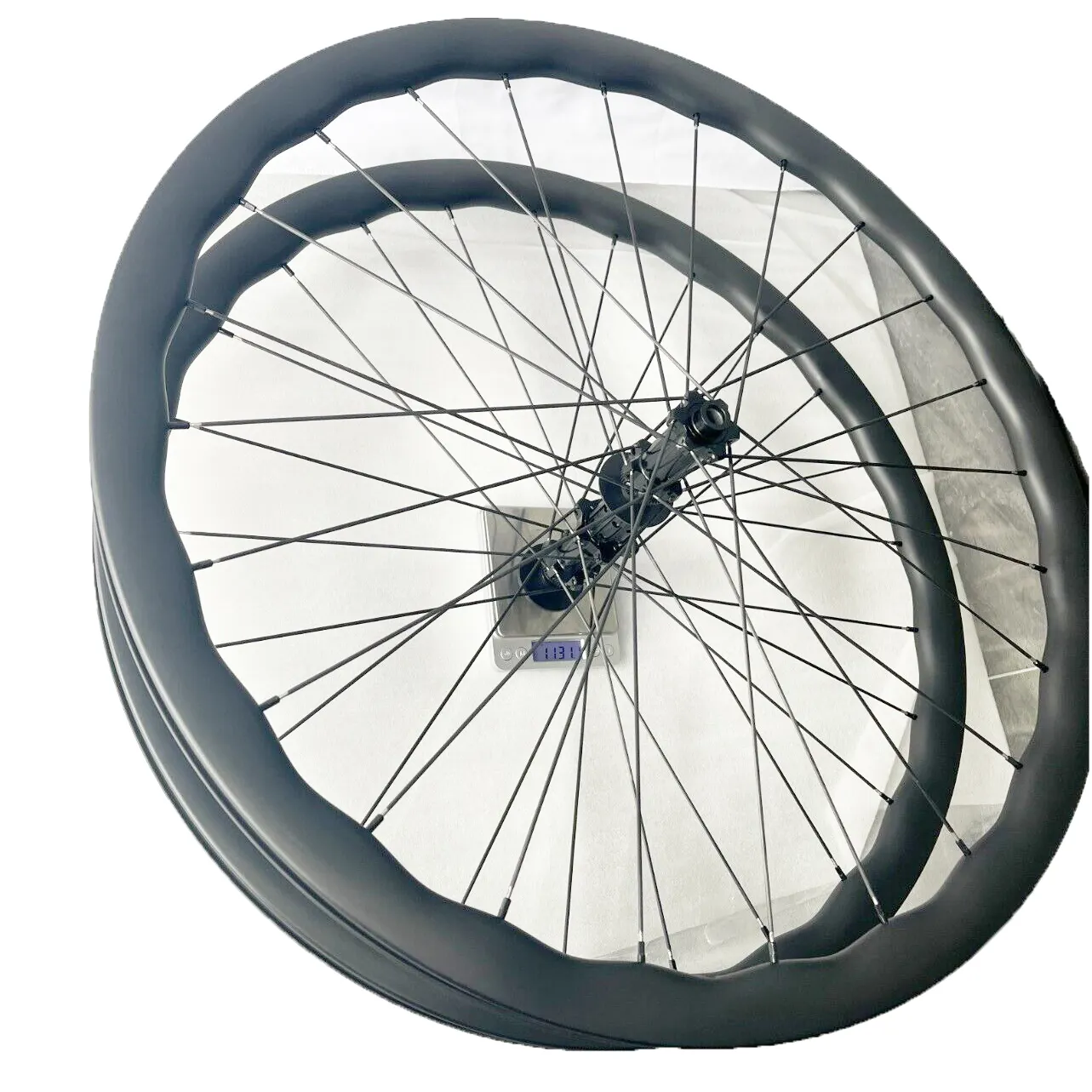

Weight wheelset : R1 hub with XL rim and 1420 spokes
35mm 1260g+-30g
40mm 1290g+-30g
45mm 1358g+-30g
50mm 1386g+-30g
55mm 1410g+-30g
65mm 1460g+-30g
Recommended Tire Width:23C~43C
TECH
The latest advancement of our popular Pro All Road Series, our new wave profile offers significant performance benefits.
The design reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.
AR50 disc’s are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.
these rims avaliable
