RT240 DFS GHOST series hub
RT240 DFS GHOST series hub
Couldn't load pickup availability
Specification : RT240
Material :AL 6061 (Body) + AL 7075 (Freehub & Axle)
Spoke Holes :20H/20H
Bearing: 2×6803 2×15267/6802
Spoke Gauge: 14G OLD 100MM 142MM
End Caps Φ9MM QR & Φ12MM THRU 12MM THRU
Weight 79g 154g
Freebody System - PG Ratchet (36T or 54T)
RT240 Precision Bike Hubs
Aerospace-grade engineering for uncompromising lightweight performance
Aerospace-grade engineering for riders wanting ultralight performance.
Engineered for efficiency-driven riders, RT240 hubs lead in precision manufacturing and cycling materials.

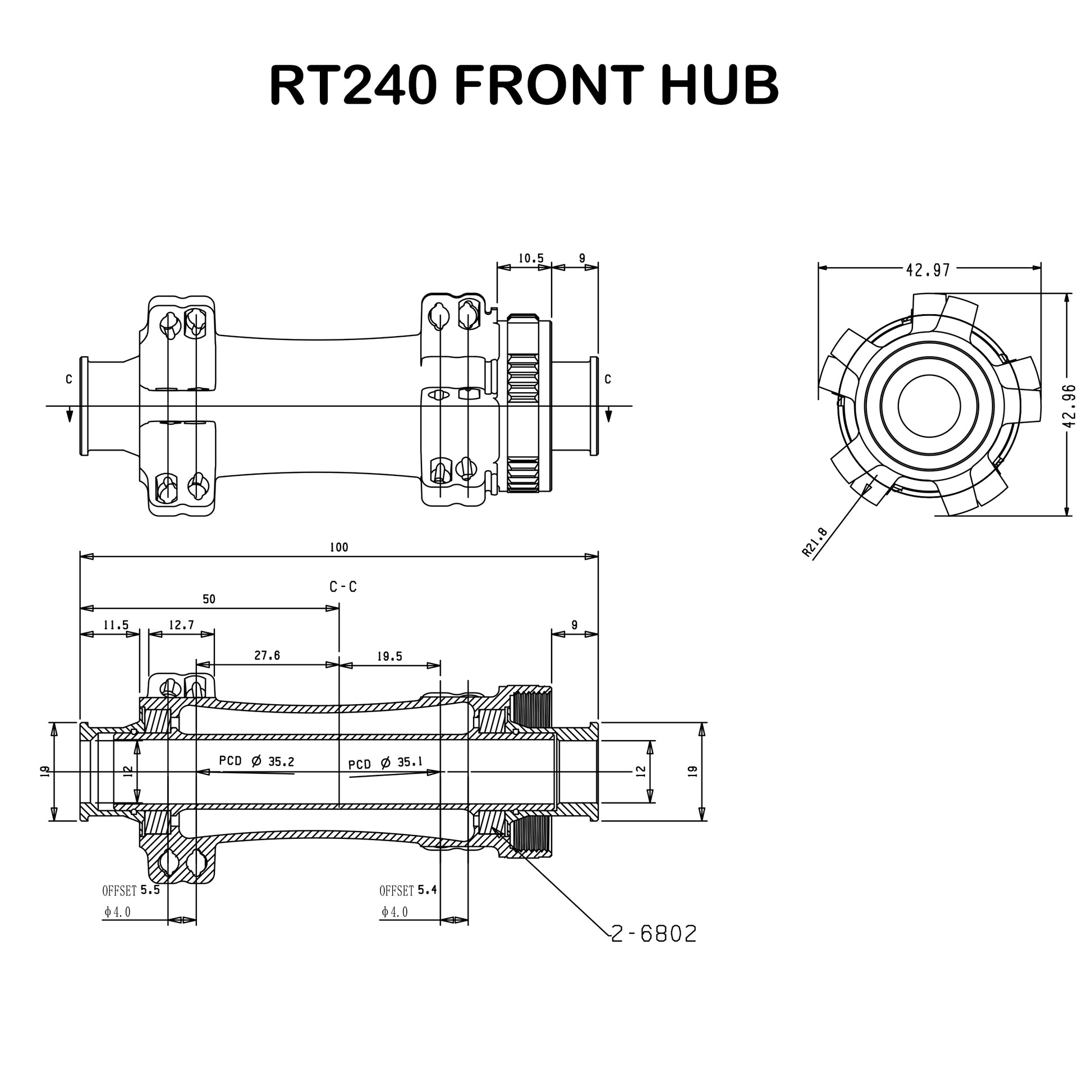

Front Hub Engineering
RT240 Front Hub fuses aerospace materials with precision manufacturing for top performance and reliability.
Ultralight Performance
At just 79g, our front hub achieves an exceptional strength-to-weight ratio through strategic use of AL6061 for the body and AL7075 for the freehub and axle.
Precision Rotation
Dual 6803 bearings provide silky-smooth rotation with minimal friction, ensuring efficient power transfer and extended component life.
Versatile Compatibility
With 20H spoke configuration, 14G spoke gauge, 100mm OLD spacing, and end caps of Φ9MM QR & Φ12MM THRU, the RT240 integrates seamlessly with modern performance frames and wheel builds.
"Hub body in AL6061 and axle in AL7075 balance durability and lightweight performance for demanding riders."
Rear Hub Performance
The RT240 Rear Hub features our advanced PG Ratchet system and optimized bearing configuration for instantaneous power delivery.
Advanced Engagement System
Our proprietary PG Ratchet mechanism 54T delivers near-instantaneous engagement for responsive acceleration and precise control.
Optimized Spacing
142mm OLD spacing provides enhanced stiffness and tire clearance while maintaining an impressive 157g weight target.
Enhanced Durability
Dual 15267 and 6802 bearings are specifically selected to handle the increased torque and load requirements of rear wheel applications.
"With P.C.D. dimensions of Φ33.2mm - Φ38.7mm, the RT240 rear hub provides exceptional bracing angle for improved wheel stiffness and power transfer."
